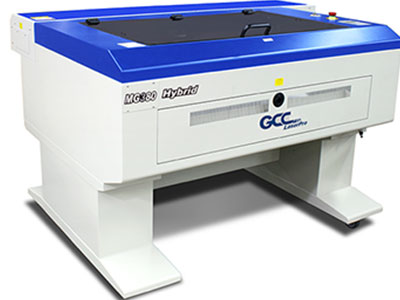

MG380Hybrid LaserPro - Laser Cutter

MG380Hybrid LaserPro - Laser Cutter

Enjoy the best combination of CO2 laser technologies with the MG380 Hybrid. Metal tube and glass tube in one chassis. Continue reading

Specifications

  • Model MG380Hybrid
  • Size (cm) 175 x 124.2 x 101.7
  • Work Area 960 x 610 mm
  • Table Size 1085 x 750 mm
  • Speeds 40 IPS
  • Wattage 12W ~ 100W
  • Cooling Air & Water

More Info

Description

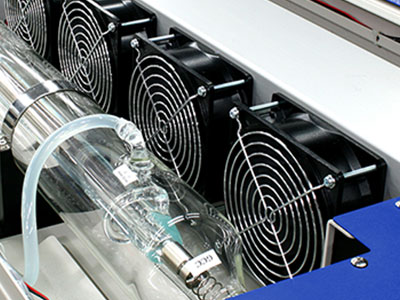

The GCC LaserPro MG380Hybrid is equipped with metal laser tube and glass laser tube at the same time which allows users to produce superior engraving and cutting work pieces. This all in one machine saves your storage space and maximises your profits. Users of the MG380 Hybrid will always have an edge thanks to the numerous uniquely innovative and user friendly features.

SPECIFICATION

MG380 Hybrid

Work Area 960 x 610mm (38 x 24in)
Laser Wattage - 12100 MG380Hybrid-12100:
RF driven metal laser tube: 12W | DC driven glass laser tube: 100W
Laser Wattage - 25100 MG380Hybrid-25100:
RF driven metal laser tube: 25W | DC driven glass laser tube: 100W
Max Part Size 1041 x 635 x 165mm (41 x 25 x 6.5in) - doors closed
Table Size 1085 x 750mm (42.7 x 29.5in)
Dimensions 1750 x 1242 x 1017mm (68.9 x 48.9 x 40 in)
Cooling RF driven laser tube: air Cooled | DC driven laser tube: Water Cooled
Driving Motor Closed-loop DC Servo Control
Max Cutting Speed 40IPS*
Speed Control Adjustable from 0.1-100% (Up to 16 colour linked speed settings per job)
Power Control Adjustable from 0-100% (Up to 16 colour linked power settings per job)
Engraving Capability 256-level gray scale image processing capability
Distance Accuracy 0.254 mm or 0.1% of move, whichever is greater
Z-Axis Movement Automatic
Focus Lens Standard 2.0', optional 1.5", 3"
Resolution (DPI) Available: 125, 250, 300, 380, 500, 600, 760, 1000,
Computer Interface 10 Base-T Ethernet, Full speed 2.0 USB
Safety Class I Laser Product Compliant with EN60825, Class II Laser Product Compliant with CDRH, 2006/42/EC Machinery Directive Compliance
Operation Voltage 200-240VAC, 50/60Hz Auto Switching, MAX. 8A
Power Consumption 1540W
Water Chiller External water chiller required
Fume Extraction System External exhaust system with minimum flow rate 640m3/h required to connect to 8-inch or 4-inch connection port on machine.

* Speed does not equal to throughput
The flow rate is determined by a default fume extraction system; the flow rate may vary due to a different fume extraction system
Specifications are subject to change without prior notice

Key Features

  • 960 mm x 610 mm (38" x 24" working area
  • Closed-loop DC servo control for precise and rapid movement of the laser carriage
  • MG380Hybrid model for versatile cutting and engraving applications
  • Reliable RF driven metal laser and DC CO2 glass laser tube
  • Pass-through doors for cutting of oversized objects
  • Uniquely innovative user - friendly features

Materials that can be lasered

Wood Cutting MDF Stone / Tile
Textile / Apparel Leather Acrylic

Easy-to-use Control Panel

Designed for simplifying complex tasks, the GCC LaserPro MG380Hybrid's user-friendly interface is a great facilitator to provide powerful function settings.

X380 Control Panel

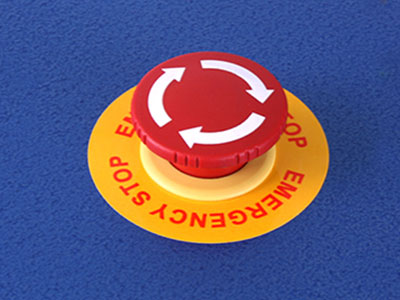

Emergency Stop

Big red button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a highly safe operational enviroment.

X380 Emergency Stop Button

Motion System with DC Servo Motor

The GCC LaserPro MG380 Hybrid utilizes a high speed closed-loop DC servo motor for precise and fast carriage movement to ensure exceptionally accurate cutting outputs.

X380 DC Servo Motor

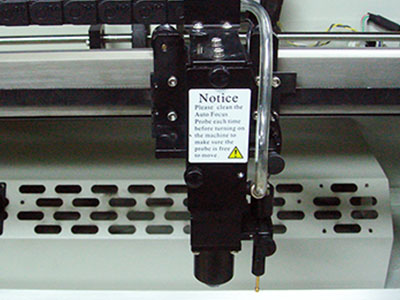

AutoFocus (Patented)

Patented AutoFoucus adjusts the laser engraver to the precise focal point on the engraving area automatically. The Autofocus is the most effective lens-focusing tool that prevents human error.

AutoFocus X380

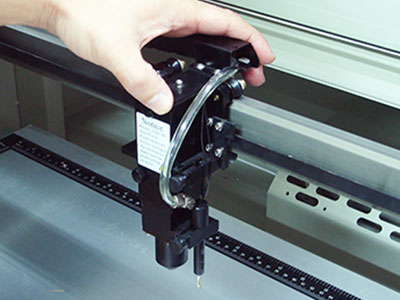

Programmable Origin

Easy-to-use position modes allow the operator an effortless way to setup a job with Drag-N-Engrave. Repetitive workflows can be drastically simplified by relocating the origin position to any desired location.

X380 Laser Cutter

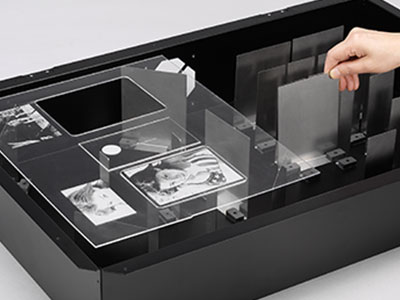

SmartBOX™ (Optional)

This innovative design is composed of a ventilation box, a honeycomb table and easily rearrangeable magnetic supporting pieces. The SmartBOX™ provides great cutting quality and remarkably enhances air extraction.

X380 SmartBOX

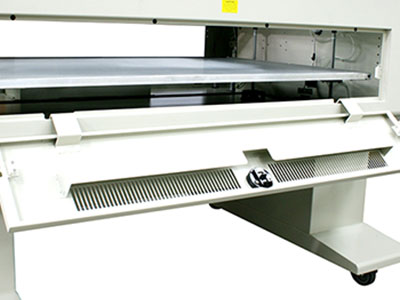

Pass-Through Front and Rear Doors

This convenient front and rear door design enables operators to load extremely long working pieces.

X380 Laser

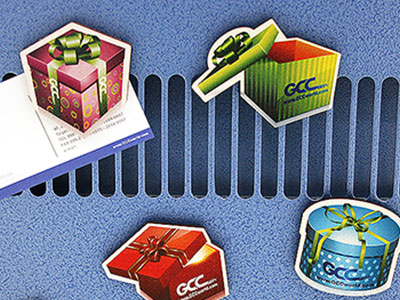

Superb Cutting & Engraving Quality

Embrace total solution in one machine. Innovative GCC LaserPro MG380Hybrid deliver superior engraving and cutting result by its high end technology.

MG380 Hybrid Cutting & Engraving Quality

Videos

Additional Info


Model

Power

Work area

Max Work Speed

Cooling

Dimensions

Materials

C180 II Laser C180 II 12W ~ 40W 458 x 305mm 40 IPS Metal (air cooled) 740 x 780 x 410 mm Metal, Signage, Stone/Tile, Acrylic, 3D Engraving, Textile/Apparel
Mercury III Laser Mercury III 12W ~ 60W 635 x 458mm 42 IPS Metal (air cooled) 1125 x 720 x 1005mm
X252 Laser X252 80W ~ 100W 635 x 458mm 40 IPS Glass (water cooled) 1650 x 930 x 1040mm Anodized Metal, Signage, MDF, Acrylic, Leather, Textile / Apparel
Spirit LS Laser Spirit LS 12W ~ 100W 740 x 460mm 80 IPS Metal (air cooled) 1125 x 720 x 1005mm Anodized Metal, Signage, Stone / Tile, Acrylic, Leather, Textile / Apparel
Spirit GLS Hybrid Laser Spirit GLS Hybrid CO2 Laser 30W ~ 100W
Fibre Laser 20W ~ 50W
960 x 610mm 80 IPS Metal (air cooled) 1365 x 880 x 1010mm Wood & Metal, 3D Engraving, 2D Ply Plastic, Stone / Tile, Acrylic, Leather & Metal, Fabrics
X380 Laser X380 80W ~ 100W 960 x 610mm 40 IPS Glass (water cooled) 1800 x 1092 x 1017mm Wood Cutting, Acrylic, Stone / Tile, MDF, Leather, Textile / Apparel
MG380 Hybrid Laser MG380 Hybrid 12W ~ 100W 960 x 610mm 40 IPS Air & Water 1750 x 1242 x 1017mm Wood Cutting, Acrylic, Stone / Tile, MDF, Leather, Textile / Apparel
T500 Laser T500 60W ~ 200W 1300 x 905mm 40 IPS Metal (air cooled) 1820 x 1250 x 1330mm Wood Engraving, Wood Cutting, Acrylic, Marble, MDF, Leather, Fabrics Cutting
X500II Laser X500 II 80W ~ 130W 1300 x 916mm 40 IPS Glass (water cooled) 1900 x 1400 x 1200mm Anodized Metal, Signage, MDF, Acrylic, Wood Cutting, Fabrics Cutting
C180 II Laser
Model C180 II
Power 12W ~ 40W
Work Area 458 x 305mm
Max Work Speed 40 IPS
Cooling Metal (air cooled)
Dimensions 740 x 780 x 410 mm
Materials Metal, Signage, Stone/Tile, Acrylic, 3D Engraving, Textile/Apparel

Mercury III Laser
Model Mercury III
Power 12W ~ 60W
Work Area 635 x 458mm
Max Work Speed 42 IPS
Cooling Metal (air cooled)
Dimensions 1125 x 720 x 1005 mm
Materials

X252 Laser
Model X252
Power 80W ~ 100W
Work Area 635 x 458mm
Max Work Speed 40 IPS
Cooling Glass (water cooled)
Dimensions 1650 x 930 x 1040mm
Materials Anodized Metal, Signage, MDF, Acrylic, Leather, Textile / Apparel

Spirit LS Laser
Model Spirit LS
Power 12W ~ 100W
Work Area 740 x 460mm
Max Work Speed 80 IPS
Cooling Metal (air cooled)
Dimensions 1125 x 720 x 1005mm
Materials Anodized Metal, Signage, Stone / Tile, Acrylic, Leather, Textile / Apparel

Spirit GLS Hybrid Laser
Model Spirit GLS Hybrid
Power CO2 Laser 30W ~ 100W
Fibre Laser 20W ~ 50W
Work Area 960 x 610mm
Max Work Speed 80 IPS
Cooling Metal (air cooled)
Dimensions 1365 x 880 x 1010mm
Materials Wood & Metal, 3D Engraving, 2D Ply Plastic, Stone / Tile, Acrylic, Leather & Metal, Fabrics

X380 Laser
Model X380
Power 80W ~ 100W
Work Area 960 x 610mm
Max Work Speed 40 IPS
Cooling Glass (water cooled)
Dimensions 1800 x 1092 x 1017mm
Materials Wood Cutting, Acrylic, MDF, Stone / Tile, Leather, Textile / Apparel

MG380 Hybrid Laser
Model MG380 Hybrid
Power 12W ~ 100W
Work Area 960 x 610mm
Max Work Speed 40 IPS
Cooling Air & water
Dimensions 1750 x 1242 x 1017mm
Materials Wood Cutting, Acrylic, MDF, Stone / Tile, MDF, Leather, Textile / Apparel

T500 Laser
Model T500
Power 60W ~ 200W
Work Area 1300 x 905mm
Max Work Speed 40 IPS
Cooling Metal (air cooled)
Dimensions 1820 x 1250 x 1330mm
Materials Wood Engraving, Wood Cutting, Acrylic, Marble, MDF, Leather, Fabrics Cutting

X500 II Laser
Model X500 II
Power 80W ~ 130W
Work Area 1300 x 916mm
Max Work Speed 40 IPS
Cooling Glass (water cooled)
Dimensions 1900 x 1400 x 1200mm
Materials Anodized Metal, Signage, MDF, Acrylic, Wood Cutting, Fabrics Cutting


Case Studies

Extras

Optional Extras:

Honeycomb Table
honeycomb table
Air Compressor Unit
Air compressor unit
SmartGUARD™ fire alarm (Patented)
SmartGuard
Fume Extraction System
fume extraction system
SmartBOX™ Cutting Accessory
X380 SmartBox Accessory
SmartBOX™
X380 SmartBox

NOTE: Images are for representation purposes and may vary from final product
