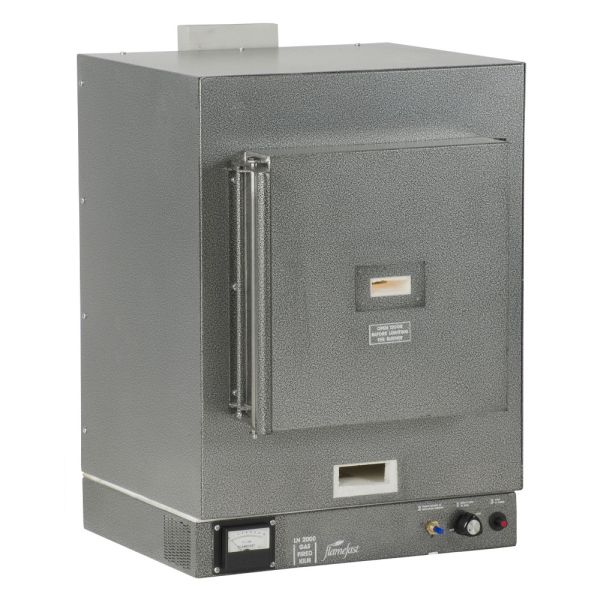

Flamefast Gas Fired Kiln - LN2000
A medium multi-purpose semi-muffled gas fired kiln for both the professional and student user. The LN2000 provides controlled heat up to a maximum temperature of approximately 1100°C.
Top Key Features
- Versatile, multipurpose unit
- Simple to install and maintain
- Piezo Spark Ignition eliminates lighting problems
- Flame Failure Device means if there is no flame, there is no gas
- Heat Control Valve ensures simple, safe temperature control
- Unique Safety Door provides minimum heat exposure
- UK Manufactured
Overview
A medium multi-purpose semi-muffled gas fired kiln for both the professional and student user. The LN2000 provides controlled heat up to a maximum temperature of approximately 1100°C.
The LN2000 Gas Fired Kiln has many uses including pottery, metal heat treatment, enamelling, melting precious metals and wax burn-outs. It is used by students of jewellery, and laboratory technicians. It reaches 850°C in only 15 minutes and approximately 1000°C in 35 minutes.
Designed for use in well ventilated areas the LN2000 runs on natural gas or bottled gas (LPG) and the flush fi tting chamber-sized door permits full use of all of the chamber volume. Requires 240V.
Key Features
- Large chamber volume
- Piezo Spark Ignition eliminates lighting problems
- Flame Failure Device (no flame = no gas)
- Heat Control Valve ensures simple, safe temp control
- Unique Safety Door provides minimum heat exposure
- Temperature Indicator / display
- Efficient in use (min gas usage)
- High grade insulation
- Constant heat input
- Controlled heat up to 1100°C
- Versatile, multipurpose unit
- Simple to install and maintain
- Fast system - 850°C in 15min
- Natural or low pressure bottle gas can be used
- 2 year warranty
- UK Manufactured

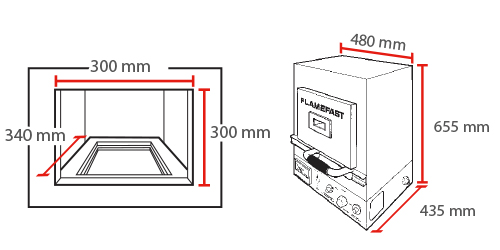

Dimensions
| Width: | 480 mm |
|---|---|
| Height: | 655 mm |
| Depth: | 435mm |
| Internal Length: | 340 mm (Internal Depth) |
| Internal Width: | 300 mm |
| Internal Height: | 300 mm |
| Weight: | 47 kg |
Technical Specifications
| Electrical: | 240V AC (for temperature display) |
|---|---|
| Safety: | Appropriate PPE must be warn at all times when operating equipment Heat control valve Flame failure device (no flame means no gas) Safety door |
| Temperature: | 1100°C - Max |
| Warranty: | 2 Years |
PLEASE STATE GAS TYPE WHEN ORDERING
IMPORTANT NOTICE: ACCORDING TO THE HEALTH & SAFETY AT WORK ACT 1974, BS 4163 AND COSHH REGULATIONS IT IS MANDATORY THAT ALL FUMES MUST BE REMOVED AT SOURCE.
Performance
| Gas Type | Rate | BTU / HRS | kW | Pressure |
| Natural gas | 0.6 m3/h | 11 000 | 3.22 | 20 mbar |
| Propane | 0.46 kg/h | 11 000 | 3.22 | 35 mbar |
| Butane | 0.46 kg/h | 11 000 | 3.22 | 28 mbar |
Applications
- Enamelling
- Metal Heat Treatment
- Wax Burnouts
- Melting Precious Metals
- Laboratory Use
- Pottery
- Dental Work
-
