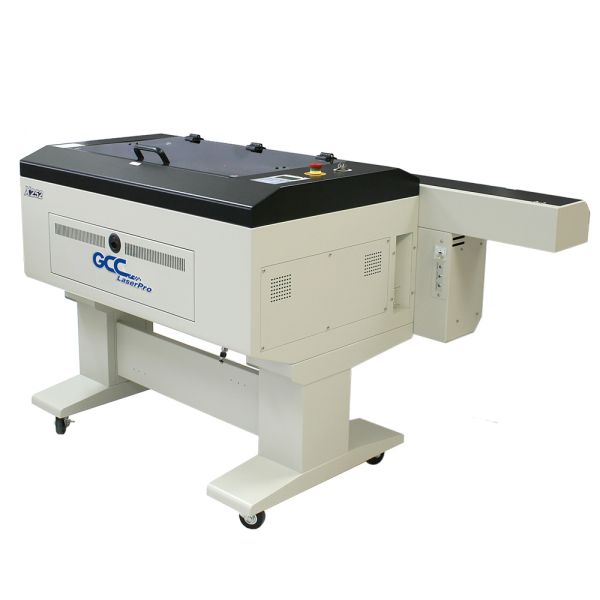

X252 LaserPro - GCC Laser Cutter Engraver

X252 LaserPro - GCC Laser Cutter Engraver

The X252 LaserPro is the best value economical laser cutter & engraver with supreme durability and quality Continue reading

Specifications

  • Model X252
  • Size (cm) 165 x 93 x 104
  • Work Area 635 x 458mm
  • Table Size 790 x 530 mm
  • Speeds 40 IPS
  • Wattage 80W ~ 100W
  • Cooling Water Cooled

More Info

Description

The LaserPro X series offers an economical alternative for laser cutting and engraving. The LaserPro X series is equipped with dependable sealed CO2 laser which offers a reliable source of 80W and 100W of power for mass production requirements

SPECIFICATION

X252RX

Work Area 635 x 458mm (25 x 18in)
Max Part Size 685 x 482 x 165mm (27 x 19 x 6.5in) - doors closed
Table Size 790 x 530mm (31.1 x 20.9in)
Dimensions 1650 x 930 x 1040mm (64.9 x 36.6 x 40.9 in)
Laser Source 80W, 100W, Sealed CO2 laser
Cooling Water Cooled
Drive Closed-loop DC Servo Control
*Max Motor Speed 40 IPS
Speed Control Adjustable from 0.1-100% (Up to 16 colour linked speed settings per job)
Power Control Adjustable from 0-100% (Up to 16 colour linked power settings per job)
Engraving Capability 256-level gray scale image processing capability
Distance Accuracy 0.254 mm or 0.1% of move, whichever is greater
Z-Axis Movement Automatic
Focus Lens Standard 2.0', optional 3'
Resolution (DPI) Available: 125, 250, 500, 1000
Memory Buffer 32MB standard
Computer Interface 10 Base-T Ethernet, Full speed 2.0 USB
Operating System MS Windows
Safety Class I Laser Product Compliant with EN60825, Class II Laser Product Compliant with CDRH 2006/42/EC Machinery Directive Compliance
Operation Voltage 200-240VAC, 50-60Hz Auto Switching, Max 8A
Power Consumption 1320W
Water Chiller External water chiller required
Fume Extraction System External exhaust system with minimum flow rate 640m;j/h is required, 4-inch connection port on the back of machine.

* Speed is not equal to throughput.
The flow rate is determined by a default fume extraction system; the flow rate may vary due to a different fume extraction system
Specifications are subject to change without prior notice

Key Features

  • 635 x 458 mm (25"x 18") working area
  • Closed-loop DC servo control for precise and rapid movement of the lens carriage
  • Reliable DC excited CO2 laser
  • Pass-through doors to accommodate oversized objects
  • Uniquely innovative user-friendly features

Materials that can be lasered

Anodized Metal Signage MDF
Leather Textile / apparel Acrylic

Motion System with DC Servo Motor

The GCC LaserPro X252 utilizes a high speed closed-loop DC servo motor for precise and fast carriage movement to ensure exceptionally accurate cutting outputs.

X252 DC Servo Motor

Pass-through front and Rear Doors

This convenient front and rear door design enables operators to load extremely long working pieces.

x252

Easy-to-use Control Panel

A control panel with coherent hot-key design and graphic icon displays that allows you to directly change the laser parameter setting, set jobs to repeat unlimited times, queue job, delete jobs, and more.

x252 Intuitive Control Panel

AutoFocus

The plug-and-play probe design makes focusing a one-touch process and provides the accuracy and precision for optimum quality in the lasing process.

X252 AutoFocus

Programmable Origin

Easy-to-use position modes allow the operator an effortless way to setup a job with Drag-N- Engrave. Repetitive workflows can be drastically simplified by relocating the origin position to any desired location.

X252 Laser

SmartBOX™ (optional)

The innovative design is composed of a ventilation box, a honeycomb table and rearrangeable magnetic supporting pieces. The SmartBOX™ provides great cutting quality and remarkably enhance air extraction.

SmartBox

SmartCENTER™ (Patented)

The super user-friendly SmartCENTER™ function helps end users to easily and automatically locate the center point of objects of any shape vastly eliminating tedious setup time.

SmartCenter

Key Switch & Emerg. Stop

Key switch safeguards the machine from unauthorized use. Prominent emergency button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a safe operating environment.

Programmable Origin modes

Videos

Additional Info


Model

Power

Work area

Max Work Speed

Cooling

Dimensions

Materials

C180 II Laser C180 II 12W ~ 40W 458 x 305mm 40 IPS Metal (air cooled) 740 x 780 x 410 mm Metal, Signage, Stone/Tile, Acrylic, 3D Engraving, Textile/Apparel
Mercury III Laser Mercury III 12W ~ 60W 635 x 458mm 42 IPS Metal (air cooled) 1125 x 720 x 1005mm
X252 Laser X252 80W ~ 100W 635 x 458mm 40 IPS Glass (water cooled) 1650 x 930 x 1040mm Anodized Metal, Signage, MDF, Acrylic, Leather, Textile / Apparel
Spirit LS Laser Spirit LS 12W ~ 100W 740 x 460mm 80 IPS Metal (air cooled) 1125 x 720 x 1005mm Anodized Metal, Signage, Stone / Tile, Acrylic, Leather, Textile / Apparel
Spirit GLS Hybrid Laser Spirit GLS Hybrid CO2 Laser 30W ~ 100W
Fibre Laser 20W ~ 50W
960 x 610mm 80 IPS Metal (air cooled) 1365 x 880 x 1010mm Wood & Metal, 3D Engraving, 2D Ply Plastic, Stone / Tile, Acrylic, Leather & Metal, Fabrics
X380 Laser X380 80W ~ 100W 960 x 610mm 40 IPS Glass (water cooled) 1800 x 1092 x 1017mm Wood Cutting, Acrylic, Stone / Tile, MDF, Leather, Textile / Apparel
MG380 Hybrid Laser MG380 Hybrid 12W ~ 100W 960 x 610mm 40 IPS Air & Water 1750 x 1242 x 1017mm Wood Cutting, Acrylic, Stone / Tile, MDF, Leather, Textile / Apparel
T500 Laser T500 60W ~ 200W 1300 x 905mm 40 IPS Metal (air cooled) 1820 x 1250 x 1330mm Wood Engraving, Wood Cutting, Acrylic, Marble, MDF, Leather, Fabrics Cutting
X500II Laser X500 II 80W ~ 130W 1300 x 916mm 40 IPS Glass (water cooled) 1900 x 1400 x 1200mm Anodized Metal, Signage, MDF, Acrylic, Wood Cutting, Fabrics Cutting
C180 II Laser
Model C180 II
Power 12W ~ 40W
Work Area 458 x 305mm
Max Work Speed 40 IPS
Cooling Metal (air cooled)
Dimensions 740 x 780 x 410 mm
Materials Metal, Signage, Stone/Tile, Acrylic, 3D Engraving, Textile/Apparel

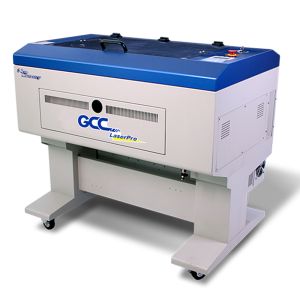

Mercury III Laser
Model Mercury III
Power 12W ~ 60W
Work Area 635 x 458mm
Max Work Speed 42 IPS
Cooling Metal (air cooled)
Dimensions 1125 x 720 x 1005 mm
Materials

X252 Laser
Model X252
Power 80W ~ 100W
Work Area 635 x 458mm
Max Work Speed 40 IPS
Cooling Glass (water cooled)
Dimensions 1650 x 930 x 1040mm
Materials Anodized Metal, Signage, MDF, Acrylic, Leather, Textile / Apparel

Spirit LS Laser
Model Spirit LS
Power 12W ~ 100W
Work Area 740 x 460mm
Max Work Speed 80 IPS
Cooling Metal (air cooled)
Dimensions 1125 x 720 x 1005mm
Materials Anodized Metal, Signage, Stone / Tile, Acrylic, Leather, Textile / Apparel

Spirit GLS Hybrid Laser
Model Spirit GLS Hybrid
Power CO2 Laser 30W ~ 100W
Fibre Laser 20W ~ 50W
Work Area 960 x 610mm
Max Work Speed 80 IPS
Cooling Metal (air cooled)
Dimensions 1365 x 880 x 1010mm
Materials Wood & Metal, 3D Engraving, 2D Ply Plastic, Stone / Tile, Acrylic, Leather & Metal, Fabrics

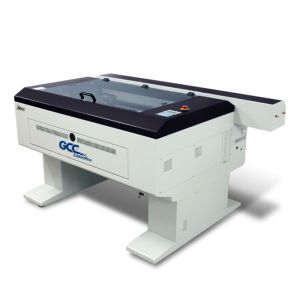

X380 Laser
Model X380
Power 80W ~ 100W
Work Area 960 x 610mm
Max Work Speed 40 IPS
Cooling Glass (water cooled)
Dimensions 1800 x 1092 x 1017mm
Materials Wood Cutting, Acrylic, MDF, Stone / Tile, Leather, Textile / Apparel

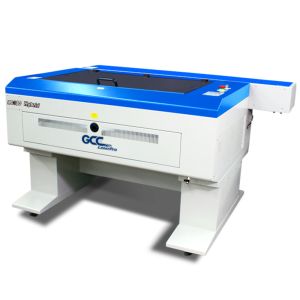

MG380 Hybrid Laser
Model MG380 Hybrid
Power 12W ~ 100W
Work Area 960 x 610mm
Max Work Speed 40 IPS
Cooling Air & water
Dimensions 1750 x 1242 x 1017mm
Materials Wood Cutting, Acrylic, MDF, Stone / Tile, MDF, Leather, Textile / Apparel

T500 Laser
Model T500
Power 60W ~ 200W
Work Area 1300 x 905mm
Max Work Speed 40 IPS
Cooling Metal (air cooled)
Dimensions 1820 x 1250 x 1330mm
Materials Wood Engraving, Wood Cutting, Acrylic, Marble, MDF, Leather, Fabrics Cutting

X500 II Laser
Model X500 II
Power 80W ~ 130W
Work Area 1300 x 916mm
Max Work Speed 40 IPS
Cooling Glass (water cooled)
Dimensions 1900 x 1400 x 1200mm
Materials Anodized Metal, Signage, MDF, Acrylic, Wood Cutting, Fabrics Cutting


Case Studies

Extras

Optional Extras:

SmartBox™
X252 SmartBox
Air Compressor Unit
optional Air compressor unit
SmartGUARD™ fire alarm (Patented)
X252 SmartGuard
Fume Extraction System
fume extraction system
External Control Interface Board
X252 Control
Honeycomb Table
honeycomb table

NOTE: Images are for representation purposes and may vary from final product
