Specifications are subject to change without prior notice.
GCC Laser Cutter - X380
Categories: Laser Machines , Laser Cutters , CNC & GCC Laser Solutions , Laser Cutters & Engravers , Workshop Equipment
The GCC LaserPro X380 laser cutter is equipped with dependable sealed CO2 laser which offers a reliable source of laser power for mass production requirements.
Top Key Features
- Easy-to-use Control Panel
- Programmable Origin
- RoHS Compliance
- SmartBOXâ„¢ Cutting Accessory (Optional)
- Rigid and Reliable Construction
Overview
The GCC LaserPro X380 laser cutter is equipped with dependable sealed CO2 laser which offers a reliable source of laser power for mass production requirements.
The GCC LaserPro X series offers an economical alternative for laser cutting and engraving, which provides users an edge over others with numerous uniquely innovative and user-friendly features.
Key Features
- Easy-to-use Control Panel
- Programmable Origin
- RoHS Compliance
- SmartBOXâ„¢ Cutting Accessory (Optional)
- Rigid and Reliable Construction
- Motion System with DC Servo Motor
- Pass-through Front to Rear Doors (Optional)
- Superb Cutting Quality
Dimensions
| Dimensions: | 1800 x 1092 x 1017 mm |
|---|---|
| Work Area: | 960 x 610 mm |
| Part Size: | 1041 x 635 x 165 mm / 1041 x ∞ x 165 mm (All doors open) |
| Table Size: | 1085 x 750 mm |
Technical Specifications
| Computer Interface / Network: | 10 Base-T Ethernet USB Type-A 2.0 – For USB storage (Max. 32GB capacity, FAT file system) USB Type-B 2.0 – For connecting with the computer |
|---|---|
| Display: | 4-line LCD display showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus |
| Electrical: | 200-240VAC, 50/60Hz Auto Switching, MAX. 8A. |
| Extraction System: | External exhaust system with minimum flow rate 800m3/h (CFM 471 ft3/min) is required,2.3kPA negative pressure (Pure-Air PA-1500FS @ 4" & 8" exhaust port) |
| Safety: | Class 1 Laser Product Compliant with EN60825 Class 2 Laser Product Compliant with CDRH 2006/42/EC Machinery Directive Compliance Class 4 Laser Product Compliant with CDRH with the optional pass-through door module |
| Speed: | Max Motor Speed: 1.01 m/s (40 in/s) |
| Cooling: | Water Cooled |
| Distance: | 0.254 mm or 0.1% of move, whichever is greater |
| Drive: | Closed-loop DC servo control |
| Engraving Capability: | 256-level gray scale image processing capability |
| Focus Lens: | Standard 2.0", Optional 1.5", 3" |
| Laser Source: | 80W / 100W / Sealed CO2 Laser |
| Power Control: | Adjustable from 0~100% ( Up to 16 color-linked power settings per job ) |
| Resolution / DPI: | Available125, 250 , 500, 1000 |
| Speed Control: | Adjustable from 0.1~100% ( Up to 16 color-linked speed settings per job ) |
| Water Chiller: | External water chiller required |
| Z-Axis: | Automatic |
Optional Items
Purex Fume Extraction System
GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line GCC LaserPro laser engraving and cutting systems. Purex is specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Noise-free operation, high vacuum capacity, compact design, and long life expectancy, the Purex is CE-compliant that represents the latest invention in exhaust extraction and smoke reduction technology for all types of applications.
SmartTOOLâ„¢
The GCC SmartTOOLâ„¢ is a Windows CorelDraw extension that drastically reduces process times. It simplifies tasks, saves time, and is intuitive to use without training. You will be amazed by its features.
Rotary Attachment
Elevate the laser engraver and cutter to a higher level! By using the rotary attachment, laser engraving on cylindrical or round objects is now possible. This option uses the fourth axis to rotate your object 360° to allow engraving on cups, wine glasses or even a baseball with two types of conical fixtures available. The minimum/maximum diameter and length of the working object are 7 mm / 110 mm and 650 mm respectively. Its maximum weight should not exceed 4kgs.
Air Compressor
A specially designed Air Compressor, by using an oil-less diaphragm, you help eliminate the harmful and damaging side effects of moisture on the laser optics. Also, provides the optimal air pressure your laser needs to blow away vaporized particles and helps prevents overheating. A must to keep lenses and mirrors clean to promote longer laser life.
SmartGUARDâ„¢ Fire Alarm (Patented)
Laser engraving and cutting operation using the SmartGUARD Fire Alarm assures optimum safety. When there is a malfunction, the alarm system will be active and shut-down the operation system immediately.
Honeycomb Table
A clean and better cutting quality is achieved by the honeycomb table when cutting materials into small pieces. It lifts the workpiece off the work table from hitting by laser reflection. The dust and vapor created during processing are then taken away effectively through the honeycomb cell by a down vacuum funnel exhaust. Rather than handling rigid materials, the honeycomb table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting results.
SmartPRINTâ„¢
SmartPRINTâ„¢ software features powerful functions, an intuitive interface, and built-in GCC LaserPro laser parameter setting for both Mac and Windows users. SmartPRINTâ„¢ provides clipart libraries, compatibility for various file formats, and advanced graphic functions such as Auto Trace Image Contour, Convert to Rhinestone, Generate Puzzle, and many more. Also, the additional text justification and sizing options can convert stroke to the path.
Entry-Level Fume Extraction System
GCC PA-1500FS & PA-1000FS, CE-certified fume extraction systems, are designed to remove hazardous fumes and dust during laser processing to protect the health of operators, eliminate environmental pollution and enhance laser engraving and cutting.
* For seamless fume extractor control via laser machines, we recommend considering the purchase of an external I/O board.
* For seamless fume extractor control via laser machines, we recommend considering the purchase of an external I/O board.
External Interface Control Board
The External Control Interface Board is an optional item that allows users to set up GCC LaserPro laser engraving and cutting systems for communication with external devices such as odor reduction units, robot arms, and others via a 5V or 12V signal to form an automatic production line. Another useful practice applies in certain working environments when users are required to set up an extra remote interlock control or when laser machines are allowed to be switched off if a security device is triggered.The External Control Interface Board is an optional item that allows users to set up GCC LaserPro laser engraving and cutting systems for communication with external devices such as odor reduction units, robot arms, and others via a 5V or 12V signal to form an automatic production line. Another useful practice applies in certain working environments when users are required to set up an extra remote interlock control or when laser machines are allowed to be switched off if a security device is triggered.
SmartBOXâ„¢
An innovative technology for laser engravers and cutters that integrates the ventilation box with a honeycomb table or aluminum grid cutting table. The result is not only a precise cut with sharp edges, but also a clean laser table to work on.
SmartAIRâ„¢ Fine Nozzle
The optional SmartAIR Fine Nozzle is recommended for laser engraving or cutting thin materials such as textile. The smaller caliber nozzle is positioned closer to the object for a concentrated blast directed over a small area to eliminate burning on the cutting edge. The perfectly-vertical design of the SmartAIR Fine Nozzle produces a concentrated airflow to blow away dust and unwanted residue, leaving a clean product surface.
AAS Contour Cutting Device
Developed by GCC LaserPro, AAS is an exceptionally user-friendly operation which offers accurate and faultless contour cutting by automatically tracking the position of graphics for laser engravers and cutters.
Note: Working area and engraving speed will be reduced when AAS module is installed.
*The working area will be changed to 790mm X 580mm (31.1" x 22.8") after installing the AAS Contour Cutting Device.
Note: Working area and engraving speed will be reduced when AAS module is installed.
*The working area will be changed to 790mm X 580mm (31.1" x 22.8") after installing the AAS Contour Cutting Device.
Spirit LS PRO Laser Engraving Features

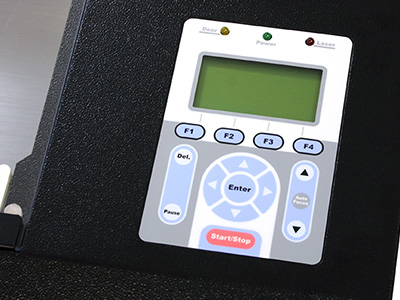

Easy-to-use Control Panel
Designed for simplifying complex tasks, the GCC LaserPro X380's user-friendly interface is a great facilitator to provide powerful function settings.
Programmable Origin
Easy-to-use position modes allow the operator an effortless way to setup a job with Drag-N- Engrave. Repetitive workflows can be drastically simplified by relocating the origin position to any desired location.
RoHS Compliance
All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.
SmartBOXâ„¢ Cutting Accessory (Optional)
This innovative design is composed of a ventilation box, a honeycomb table and easily rearrangeable magnetic supporting pieces. The SmartBOXTM provides great cutting quality and remarkably enhances air extraction.

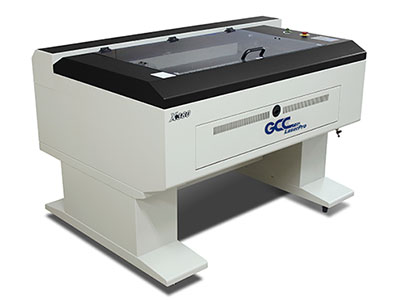

Rigid and Reliable Construction
Solid machine structure ensures superior output quality and motion stability for superb performance.
Motion System with DC Servo Motor
The GCC LaserPro X380 utilizes a high speed closed-loop DC servo motor for precise and fast carriage movement to ensure exceptionally accurate cutting outputs.

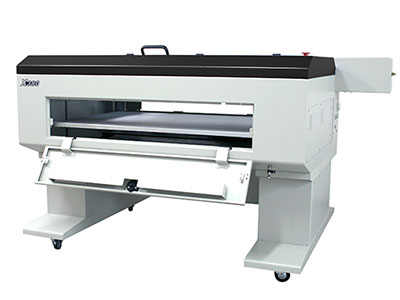

Pass-through Front to Rear Doors (Optional)
A design with doors on both ends to accommodate extremely long working pieces, front door without the need for a screwdriver.
Superb Cutting Quality
As a transcendent professional laser cutting system, the GCC LaserPro X380 is capable of various cutting applications and able to yield excellent cutting edges.
X-Series Laser Cutter Introduction
The Best Economical Choice GCC LaserPro X-series (Laser Cutting Systems)
Embrace the extraordinary cutting qualities from the GCC LaserPro X series designed and engineered for professional use. Packed with several user-friendly features, the GCC LaserPro X500II offers high product performance in terms of both durability and feasibility. The X500II model combines cutting and engraving capabilities to give users a versatile system.
