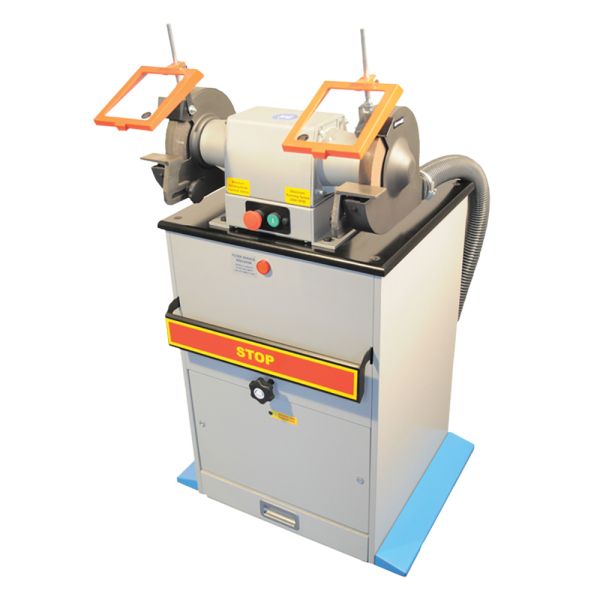

Gryphon GR2503 T Range- Double Ended Grinder

The Flamefast Gryphon Double-Ended Grinder has been designed to meet strict performance and safety criteria and is, therefore ideal for use in schools and colleges.

Top Key Features

  • Bench, pedestal or dust extraction mounted
  • Adjustable, non-tip cast-iron work rests
  • Spark arrestors

Overview

The Flamefast Gryphon Double-Ended Grinder has been designed to meet strict performance and safety criteria and is, therefore ideal for use in schools and colleges.

The Gryphon complies with UK COSHH regulations, the European Machinery Directive and with the BS 4163:2007 “Health and Safety for Design and Technology in schools and similar establishments” regulations. All our education machines carry a 24-month warranty and are supplied with an operating manual.

Key Features

  • Bench, pedestal or dust extraction mounted
  • Adjustable, non-tip cast-iron work rests
  • Spark arrestors
  • Heavy duty adjustable polycarbonate eye shields
  • Grinding wheels perfectly balanced for minimum noise and vibration
  • 200mm or 250mm diameter wheel
  • Supplied with two grinding wheels, one coarse and one fine

Dimensions

Technical Specifications

3 Phase:

Dust Extraction: GR2503TE

Pedestal: GR2503TP

Bench: GR2503T

Electrical:400V / 3ph / 50Hz
Griding Wheel:Resinoid grinding wheels
Motor:1.1kw
Speed:2880rpm at 50Hz / 3450rpm at 60Hz (resinoid grinding wheels)
Wheel Size:250 x 25 x 20 mm
