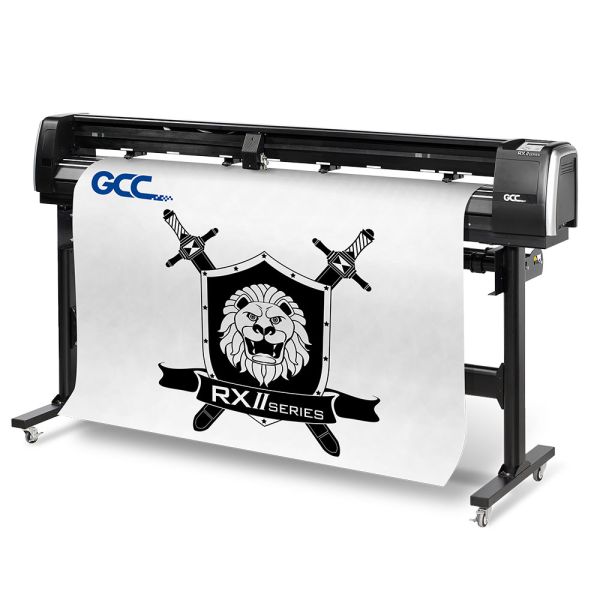

GCC RX II / RX II (Creasing) Vinyl Cutter
The brand new RX II series of cutting plotters is available in four sizes, 61cm, 101cm, 132cm, and 183cm, which are among the best models for higher blade pressure, faster-cutting throughput, and precision of long tracking compared to same class models.
Top Key Features
- Creasing Ability (only for creasing model)
- Extension Holder for Die-Cut Applications
- Section Cutting
- Auto Rotation
- Segmental Positioning
- Enhanced AAS II Contour Cutting System
Overview
The brand new RX II series of cutting plotters is available in four sizes, 61cm, 101cm, 132cm, and 183cm, which are among the best models for higher blade pressure, faster-cutting throughput, and precision of long tracking compared to same class models.
Designed With a stylish appearance and new functional features, the RX II series is the top notch cutter in the market for professional sign makers.
Key Features
- Creasing Ability (only for creasing model)
- Extension Holder for Die-Cut Applications
- Section Cutting
- Auto Rotation
- Segmental Positioning
- Enhanced AAS II Contour Cutting System
- Multiple Pressure Pinch Rollers for Different Media
- Triple Port Connectivity
- Auto Cut Off
- Touch Key Panel & Backlight LCM
- 600 Grams of Cutting Force
- Innovative Tangential Mode
- Media Support System
- Advanced One Click Driver
- Multiple Parameters Setting by 16 Different Colors
- Selective Pinch Roller Positioning
- Guaranteed 10m Tracking Ability
Dimensions
| RX II-61 (Creasing) | RX II-61 | RX II-101S | RX II-132S | RX II-183S | |
| Dimension (HxWxD) mm | 437 x 1098 x 479 | 1147 x 1614 x 651 | 1147 x 1923 x 651 | 1147 x 2433 x 756 | |
| Dimension (HxWxD) in | 17.2 x 43.2 x 18.8 | 45.2 x 63.5 x 23.8 | 45.2 x 75.7 x 23.8 | 45.2 x 95.8 x 29.8 | |
| Net Weight | 25.5kg (56.22 lb) | 25kg (55.12 lb) | 61.8kg (136.2 lb) | 71.5kg (157.6 lb) | 82kg (180.8 lb) |
Technical Specifications
| Model Number | RX II-61 (Creasing) | RX II-61 | RX II-101S | RX II-132S | RX II-183S |
| Operational Method | Roller-Type | ||||
| Max. Cutting Width | 536mm(21 in.) | 610mm(24 in.) | 1010mm(40 in.) | 1320mm(52 in.) | 1830mm(72 in.) |
| Max. Cutting Length | 50m (164ft) | ||||
| Max. Media Loading Width | 642mm(25.28 in.) | 810mm(31.88 in.) | 1326mm(52.2 in.) | 1635mm(64.37 in.) | 2145mm(84.44 in.) |
| Min. Media Loading Width | 50mm (1.97 in.) | ||||
| Number of Pinch Rollers | 3 | 4 | 5 | ||
| Acceptable Material Thickness | 0.8mm (0.03 in.) | ||||
| Drive Motor | DC Servo Control | ||||
| Max. Cutting Force | 600 g | ||||
| Max. Cutting Speed | 1530 mm/sec (60 in./s) (at 45° direction) | ||||
| Acceleration | 4.2 G (gravity) | ||||
| Offset | 0~1.0 mm (with an increase of 0.025mm) | ||||
| Memory Buffer | 32 MB /16 MB (when using AAS) | ||||
| Interfaces | USB 2.0 (Full Speed), Serial (RS-232) and Ethernet | ||||
| Type of Command | HP-GL, HP-GL/2 | ||||
| Mechanical Resolution | 0.006 mm | ||||
| Software Resolution | 0.025 mm | ||||
| Distance Accuracy | ±0.254 mm or ±0.1% of move, whichever is greater | ||||
| Repeatability | ±0.1mm | ||||
| Automatic-Aligning System | Completely Automatic Contour Cutting System for print to cut solution | ||||
| Auto Rotation | Yes | ||||
| Section Cutting | Yes | ||||
| Curve & Arc Smoothing | Yes | ||||
| Configurable Origin | Yes | ||||
| Test Cut Capability | Yes | ||||
| Tangential Mode | Yes | ||||
| Over Cut | Yes | ||||
| Repeat | Yes | ||||
| Copy | Yes | ||||
| Control Panel | LCD (20 digits x 2 lines), 15 Keys, 1 Power LED, 1 Green LED | ||||
| Diameter of Blade | 2.5 mm | ||||
| Power Supply | 100 ~ 240VAC 50/60Hz (auto switching) | ||||
| Power Consumption | Max. 250 W | ||||
| Auto Cut Off | Standard | ||||
| Stand | Optional | Standard | |||
| Media Basket | Optional | ||||
| Operation Environment Temperature | 15°C~30°C / 60°F~86°F | ||||
| Operation Environment Humitidy | 25% ~ 75% | ||||
- Compatible with Windows 7 and above & MAC OS X 10.6 and above. (*Purchasing serial number for “Sure Cuts A Lot” software to work with Mac OS.)
- The specification and data sheet may vary with different materials used. In order to obtain the best output quality, please maintain the machine regularly and properly.
- GCC certified material in tracking is Avery MPI 3000.
- The above listed specification values are effective only when operated with media certified by GCC.
Optional Items

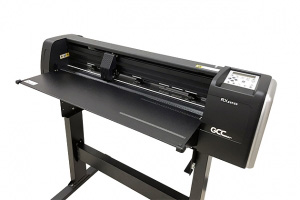

Add-on Flat Table (only for 61 model)
For cutting thick sheet material, such as magnet.

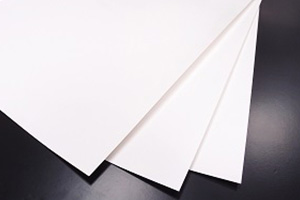

18" x 24" Low Adhesive Film (3 pcs/pk)
Put materials on the Low Adhesive Film to cut, and it’s recommended to work with Add-on Flat Table.
Metallic Blade Holder Φ2.5 mm
Adjusting the blade length to fit your needs.

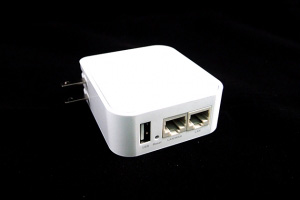

Wi-Fi Router
Wi-Fi router allows you to transmit data through a wireless network. It can work with GCC laser engravers and RX II/ Jaguar V cutting plotters through the Ethernet port (not applicable for Japanese users.) Whether you are sending files to multiple GCC machines using one PC or sharing one unit of GCC machines with multiple PCs, this wireless technology can be an excellent helper.

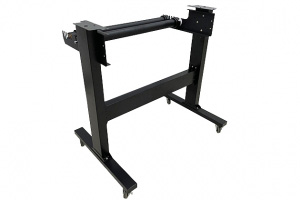

Stand
To support cutting plotter machine and roll media.
Media Basket
To keep your vinyl off the floor and away from dust or contaminants. Your production will be a clean and efficient operation.
Safe Blade
Users can cut off the finished job by the safe blade.
Cutting Blades
Users can replace the cutting blade by different materials to meet your need.
Cutting Pad
It prevents the blades from becoming blunt quickly.
GCC RX II / RX II (Creasing) Vinyl Cutter Features
Creasing Ability (only for creasing model)

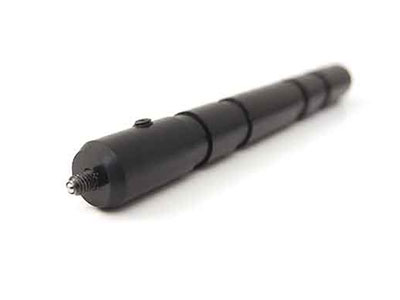

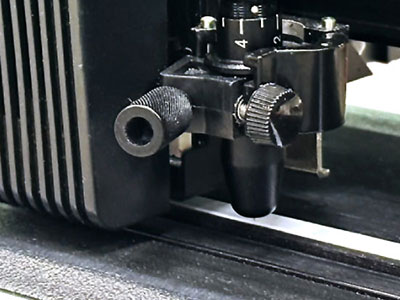

Equipped with the dual tool holders with creasing tool and blade, RX II creasing model offers cardstock creasing and cutting to make small volume of paper box. PS. It’s suggested that the cardstock weight range is 200 to 350 gsm, and the weight will vary with the type and thickness of paper.
Extension Holder for Die-Cut Applications
RXII’s Extension Holder optimizes blade positioning during die-cutting to minimize wear on blades and cutting strips, delivering long-lasting accuracy and cost efficiency.
Section Cutting

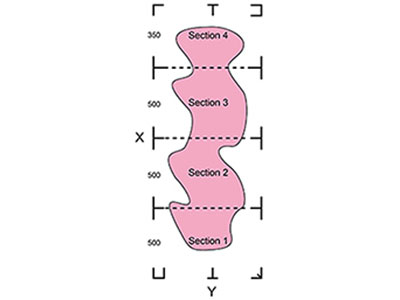

Section cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. GCC RX II series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.
Auto Rotation

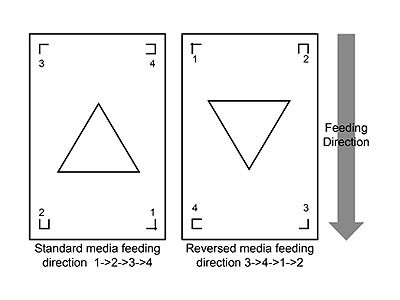

New registration marks defined to detect material feeding direction. RX II detects the unique registration marks to distinguish material feeding direction and rotate cutting content automatically. You don’t need to rotate the material by yourself.
Segmental Positioning

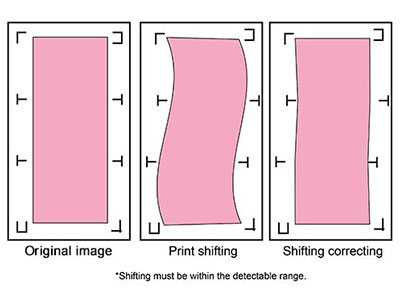

RX II series features Segmental Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.
Enhanced AAS II Contour Cutting System
The RX II series features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images.
Functions include:
Functions include:
 | 1st-mark auto-detection |  | 4-point positioning |
 | Segmental positioning |  | Multiple copies |
Multiple Pressure Pinch Rollers for Different Media

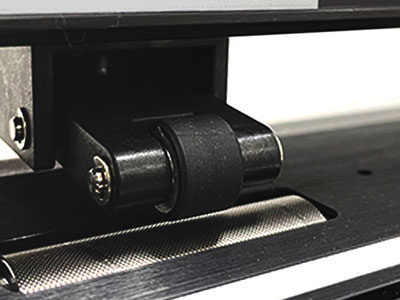

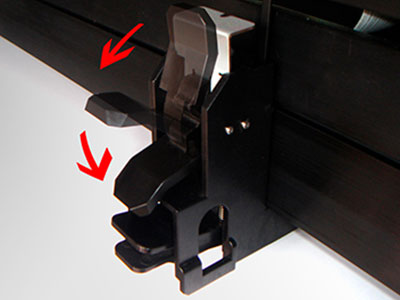

The Multi-Pressure Pinch Rollers give users three pressure settings to better cater to the different types of media that they are working with. The following shows suitable settings for some materials.
| Materials | Left side | Middle | Right side |
| Sandblast mask, Reflective film | Heavy | Medium | Heavy |
| Vinyl | Medium | Medium | Medium |
| Window tinting film | Medium | Light | Medium |

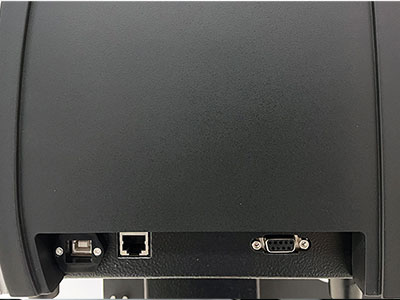

Triple Port Connectivity
RX II series supports triple port connectivity with USB, serial and Ethernet ports. The USB port provides faster and convenient data transmission between the computer and RX II. Ethernet connection enables multiple RX II to be operated by one PC and multiple PCs to share a single unit. Triple port connectivity provides sign makers a great flexibility for data transmission.
Auto Cut Off
This features allows users to set the cutter to cut off the media after the completion of each job, making it easy to set up an unattended workflow for mass production. Or user can simply push the “Cut off” button after the completion of a job to have the media cut off automatically.

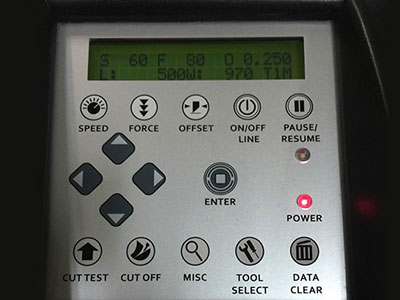

Touch Key Panel & Backlight LCM
The brand new touch key panel is easy to use and durable. The intuitive design allows new users to operate the machine easily. The easy-to-use and multi-language touch key panel can remarkably simplify complex tasks. Backlight LCM makes users can recognize the text on the panel more easily.

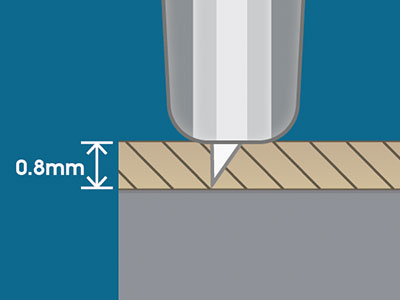

600 Grams of Cutting Force
Selectable cutting forces, ranging from 5 to 600g, accommodate a wide variety of materials, including fine and thin masking films to thick and hard reflective films.

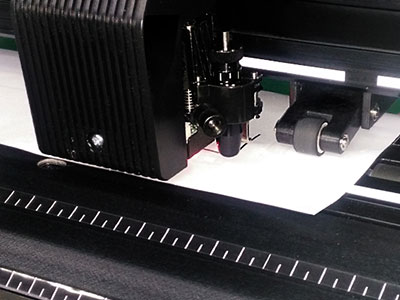

Innovative Tangential Mode
The tangential mode performs clean cuttings, diminutive letterings and intricate graphics which yield smooth corners and sleek edges on thick materials.

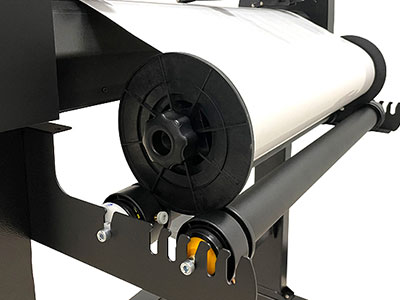

Media Support System
The media support system is fully adjustable. It supports media on standard cores and resolves media drifting and alignment problems to ensure better tracking.
Advanced One Click Driver

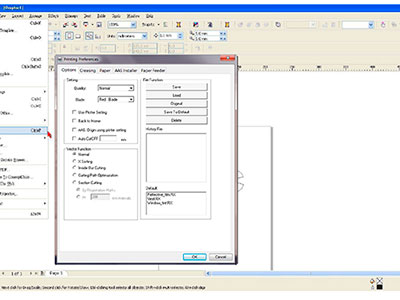

RX II series includes a Windows driver that allows sign makers to edit signs from CorelDRAW and output directly to the RX II series cutters. The One Click Driver simplifies the driver installation process. You just double click on the driver installation icon and the program will take care of the rest.

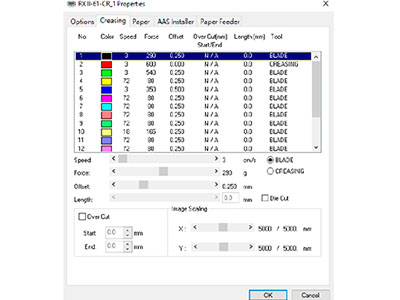

Multiple Parameters Setting by 16 Different Colors
The new interface allows users to set up multiple parameters by using different color lines. This gives the operator greater flexibility when setting up a job.
Selective Pinch Roller Positioning
Each pinch roller can be positioned and operated individually, widening the RX II series cutting plotters’ range of applications.
Guaranteed 10m Tracking Ability

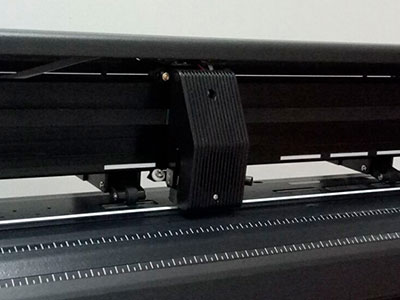

The exclusive grid drum and precisely engineered mechanism to provide superb tracking ability.
