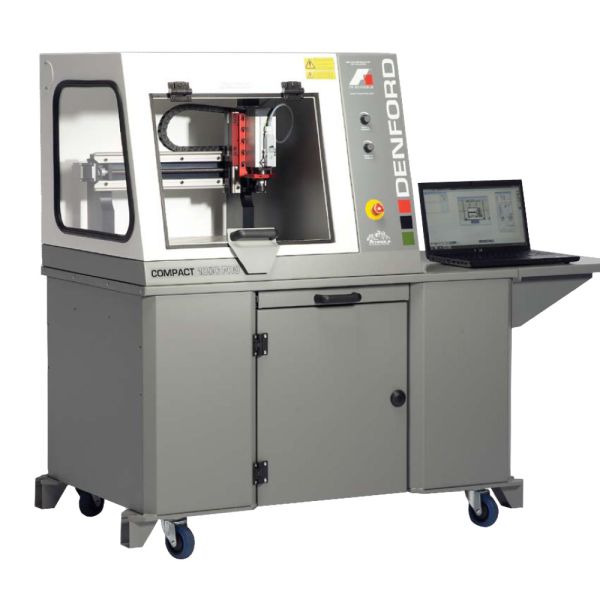

Floor Standing CNC Router - 1000 Pro

A compact 3 axis CNC Router with totally enclosed interlocking guard, suitable for all levels of education and training.

Top Key Features

Variable spindle able to cut non ferrous materials
Precision anti-backlash nuts/leadscrews
High Quality and reliable
Accurate and almost maintenance free
Perfect for use in a dusty environment

Enquire

Details

Overview

A compact 3 axis CNC Router with totally enclosed interlocking guard, suitable for all levels of education and training.

The Compact 1000 Pro is ideal for cutting a range of resistant materials such as hard and soft wood, plastic, modelling foam, acrylic and prototyping materials, as well as non-ferrous metals.

Quality, precision, maintenace free routing.

Key Features

Variable spindle able to cut non ferrous materials
Precision anti-backlash nuts/leadscrews
High Quality and reliable
Accurate and almost maintenance free
Perfect for use in a dusty environment
No lubrication required
Lower particulate generation
Longer life with non-catastrophic failure
Quieter operation (no re-circulating ball noise)
High helix
Fast leads
Zero-backlash with very light pre-load
Low drag

Specifications

Dimensions

Length:	875
Width:	765
Height:	675
Weight (Net):	116 kg (230 kg with optional base)

Technical Specifications

Electrical:	Single Phase *Alt. Available on request 230V / 8 Amps / 50 Hz
Features:	Non - Ferrous Metal Cutting Spindle Speed Control Spindle Speed Override
3D Profiling:	4500 mm/min
Axes Motor:	Stepper
Beam Clearance:	140 mm
Electrical Socket:	13A Socket
Feed Rate:	5000 mm/min
Spindle Motor:	1.0 kw
Spindle Speed:	24000 rpm (max)
Travel Y Axis:	240 mm
Travel Z Axis:	110 mm
