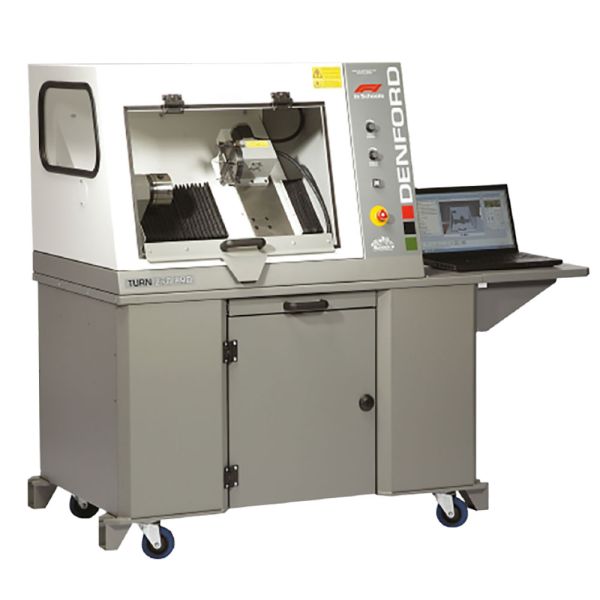

CNC Lathe Turn 270 Pro

A compact 2 axis CNC Lathe with totally enclosed high-visibility interlocking guard, suitable for all levels of education and training.

Top Key Features

  • Suitable for all levels of education and training
  • Ideal for cutting range of resistant material
  • Programmable spindle speeds & feedrate
  • 2 Axis CNC Lathe
  • Fully enclosed high-visibility interlocking guard

Overview

A compact 2 axis CNC Lathe with totally enclosed high-visibility interlocking guard, suitable for all levels of education and training.

Programmable spindle speeds and feedrates make the Turn 270 Pro ideal for cutting a range of resistant materials such as wax, plastic, acrylic, free cutting alloys, aluminum and steel.

Key Features

  • Suitable for all levels of education and training
  • Ideal for cutting range of resistant material
  • Programmable spindle speeds & feedrate
  • 2 Axis CNC Lathe
  • Fully enclosed high-visibility interlocking guard

Dimensions

Length:1000 mm
Width:768 mm
Height:675 mm
Weight (Net):140 kg (with optional base: 270 kg)

Technical Specifications

Electrical:

Single Phase, 230V-8A / 110V-10A

Frequency: 50/60 Hz

Axes Motor:Stepper
Distance:Between Centres: 270 mm
Feed Rate:3000 mm / min
Heated Bed:Swing Over 190 mm
Spindle Bore:26 mm
Spindle Motor:1.5kW - 2.0HP
Spindle Speed:4000rpm
Swing Over:Swing Over Cross Slide: 100 mm
Travel Y Axis:150 mm
Travel Z Axis:225 mm
