SMC PNEUTRAINER-400 - Pneumatics
PNEUMATICS & ELECTRO PNEUMATICS
PNEUTRAINER-400 - is a fully modular and flexible system designed for the development of professional skills related to pneumatics and electro-pneumatics.
Top Key Features:
- Fully modular and flexible system
- Anodized extruded aluminium structure
- Assembly panels solutions to adapt to user requirements
- Industrial materials that meet the highest quality levels
- Well labelled components...
Overview
A fully modular and flexible system designed for the development of professional skills related to pneumatics and electro-pneumatics.
Its flexibility makes PNEUTRAINER-400 equipment adaptable to all types of user requirements and needs. It also makes a staggered investment over time possible.
Key Features
- Fully modular and flexible system
- Anodized extruded aluminium structure
- Assembly panels solutions to adapt to user requirements
- Industrial materials that meet the highest quality levels
- Well labelled components
- 4mm instant connectors pipes for pneumatic components
- 4mm instant connection safety cables for electro pneumatic components
- Flexible EUROBOX storage container system with thermo moulded trays
- 6 Standard sets of components
- Extended range of compatible PLC trainers
- Documentation with more than 30 practical activities available
Dimensions
| Length: | 1200 mm (rolling table) |
|---|---|
| Width: | 800 mm (rolling table) |
| Height: | 1700 mm (rolling table) |
Technical Specifications
ASSEMBLY PANELS

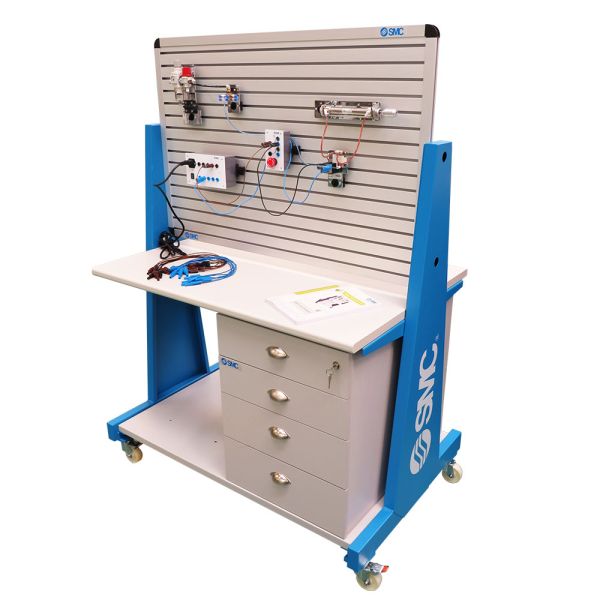

Based on an anodized extruded aluminium structure, these assembly panels offer various options. From the basic horizontal panel to the mobile table, we offer solutions adapted to all user requirements.The rolling table includes a panel which enables users to work on both sides at the same time. It also includes a support shelf for component drawers and the pneumatic compressor. All the options provide a perfect basis to carry out a range of practical activities.
INDUSTRIAL MATERIALS
All the components used are industrial. Developed and manufactured by SMC and popular throughout the world, they meet the highest quality levels. The components are mounted on a base plate. In order to be identified correctly they have a label with a corresponding reference as well as standardized symbols.
CONNECTIONSÂ
The pneumatic components incorporate instant connectors for 4 mm pipes. The electropneumatic components have 4 mm instant connecting safety cables.
STORAGEÂ
The standard kits include a storage system in EUROBOX containers with trays which allow perfect identification and storage whilst occupying minimum space. These boxes and trays can also be purchased for the storage of customized kits.Â
Skills Development - Ideal
Ideal for skill development in the following areas:
- Analysis in pneumatics technology
- Pneumatic technology design
- Technical document creation pneumatics
- Technical document understanding pneumatics
- Operation of pneumatics and sensors
Skills Development - Well Suited
Well suited to assisted skill development for:
- Analysis of vacuum, sensors and program controllers technologies
- Troubleshoot pneumatics
- Vacuum, Sensors & Program controllers technology design
- Technical document creation vacuum, sensors & program controllers
- Installation and assembly of pneumatic technologies
- Technical document understanding vacuum, sensors & program controllers
- Operation of vacuum and program controllers
- Programming of program controllers
Kits
| REF | DESCRIPTIONÂ | CODE |
| PNEU-401 | Basic pneumatics kits | SAI4-2281 |
| PNEU-402 | Advanced pneumatics kits | SAI4-2282 |
| PNEU-403 | Basic electro pneumatics kits | SAI4-2283 |
| PNEU-404 | Advanced electro pneumatics kits | SAI4-2284 |
| PNEU-405 | Pneumatics electro pneumatics kits | SAI4-2285 |
| PNEU-406 | Proportional pneumatics kits | SAI4-2286 |
Â
Pneutrainer-400
Didactic trainer PNEUTRAINER-400: Pneumatics / Electro-pneumatics is a fully modular and flexible system designed for the development of professional skills related to pneumatics and electro-pneumatics
-
