BEMATE-200 - Basic electricity mate
The BEMATE-200 provides hardware for hands-on activities and the study of DC, AC and Solid State fundamentals.
Top Key Features
- Available in mobile suitcase or tabletop format
- All required components included
- Integrated storage
- Fault insertion capability
- Covers 13 core topics in detail
- Portable and easy to transport...
Overview

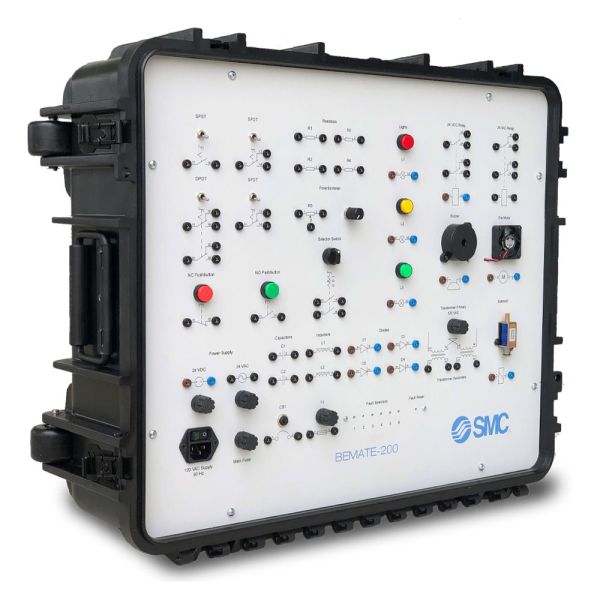

The BEMATE-200 Your Basic Electricity Mate provides hardware for hands-on activities and the study of DC, AC and Solid State fundamentals. All devices are permanently mounted and can be quickly connected in a variety of configurations via banana Jack connectors.
Users will be introduced to the function and use of various devices and circuits. In addition, test equipment and fault insertion activities will allow for development of troubleshooting skills. The system is presented in hard shell suitcase with removable cover, pull handle and casters.
Key Features:
- Available in mobile suitcase or tabletop format
- All required components included
- Integrated storage
- Fault insertion capability
- Covers 13 core topics in detail
- Portable and easy to transport
- Easy to follow activities
- Built with industry relevant components
- Connections & circuits can be developed quickly
- Hands on platform with guided curriculum
Dimensions
| Dimensions: | 530 x 610 x 330 mm |
|---|---|
| Weight: | 22.7 kg |
Technical Specifications
Topics Covered
Well suited to assisted skill development for:
- Electrical Quantities and Laws (Current, Voltage, Resistance, Power, Ohms Law, Kirchhoff’s Voltage and Current Law)
- Basic Circuits (Power Sources, Conductors, Control Devices, Electrical Loads, Over-current Protection Devices)
- Test Equipment and Instruments (Ohmmeter, Ammeter, Voltmeter, Oscilloscope)
- Resistors (Fixed, Variable)
- Switches (SPST, SPDT, DPDT, Pushbuttons, Selector Switches)
- Series, Parallel and Combination Circuits
- Magnetism
- Inductors
- Relays
- Transformers
- Capacitors
- Semiconductor (Fundamentals, Diodes,Half-wave Rectifier, Full-wave Rectifier)
- Troubleshooting Circuits
Skills Development - Ideal
Ideal for skill development in the following areas:
- Analysis in electricity technology
- Troubleshoot electricity
- Electricity designing
- Technical document creation electricity
- Installation and assembly of electricity
- Technical document understanding electricity
- Operation of electricity
Included
- 6 selectable fault switches
- Digital Multi-meter
- Two channel Hand-held Digital OscilloscopeÂ
- Breadboard kit
- Electromagnetism kit
BEMATE-200
For coursework that requires a strong foundation in electricity, the BEMATE-200 is our all-in-one training system that includes everything needed for students to develop a thorough understanding of electricity fundamentals.
-

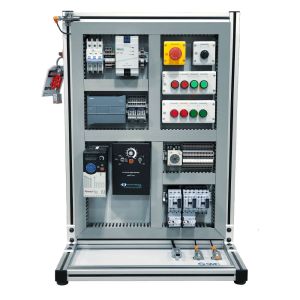

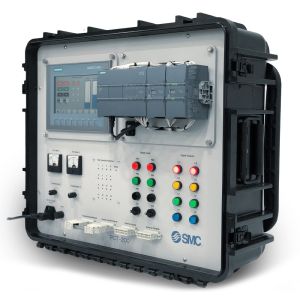

PCT-200 - Programmable controller trainerThis system is designed to provide a solution for hands-on activities in the... - ICT-200 - Industrial control trainerThe Industrial Control Trainer provides students with a flexible system...
