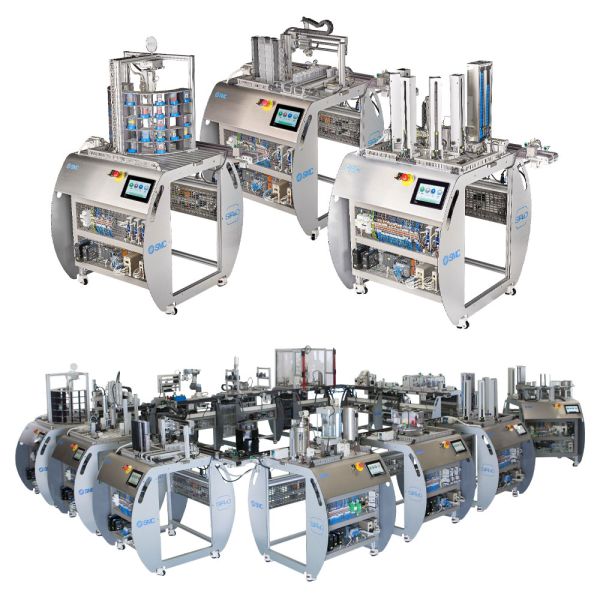

main product photo

SIF400 - Smart Innovative Factory

Categories: Training Equipment , Training Equipment , Industry 4 / Production Line

The SIF-400 training system simulates a highly automated smart factory, including Industry 4.0 technologies, advanced manufacturing concepts and the reality of the connected enterprise. Ideal for T-level training

Top Key Features

  • Connected and open system
  • Plug & Play
  • Management software
  • IIoT (Industrial Internet of Things)
  • Ideal for academics, t-levels and research
Enquire

Overview

The SIF-400 training system simulates a highly automated smart factory, including Industry 4.0 technologies, advanced manufacturing concepts and the reality of the connected enterprise.

SIF-400 allows the production of single unit containers and pack of containers. For the single unit containers, the customer triggers the order for X recipients assigning each of them a recipe. For the packs of containers, the customer triggers the order for X packs with the specific containers needed.

The teaching material is structured in three packs: station pack, technology pack and software and system pack

Key Features

  • Connected and open system
  • Plug & Play
  • Flexible
  • Modular
  • Real process
  • Management software
  • IIoT (Industrial Internet of Things)
  • Ideal for academics, t-levels and research

Dimensions

Dimensions:N/A

Technical Specifications

The Products

Multiple product configurations are available:

  • Shape of the container: square section and circular section.
  • Type of content: solid, liquid, and customized.
  • Content configuration: colour, filling level, mixing ratio....
  • Number of containers in each pack.
  • Number of packs in the final pallet.

Factory produces and delivers:

SIF-400 allows the production of single unit containers and pack of containers. For the single unit containers, the customer triggers the order for X recipients assigning each of them a recipe. For the packs of containers, the customer triggers the order for X packs with the specific containers needed.



SIF-400 can dispatch single unit containers, packs of containers and pallets of packs

Stations

SIF-401 - Pallet and container feeding station
The function of this station is to feed containers and pallets to the system.

SIF-402 - Container filling station - solid
In this station the containers of solid raw material are filled.

SIF-403 - Container filling station - liquid
In this station the containers of liquid raw material are filled.

SIF-404 - Container filling station - customized product
This station supplies the system with containers of customized material.

SIF-405 - Capping station
In this station the corresponding cap is fitted depending on the type of container that arrives.

SIF-406 - Container warehouse station
This station acts as a warehouse for finished or semi-finished products.

SIF-407 - Container labelling and dispatching station
This station has a double function: printing QR labels and dispatching the correct finished unit product orders.

SIF-408 - Container packing station
The station serves as a link between the assembly and logistics stations.

SIF-409 - Pack warehouse station
This station acts as a warehouse for finished packs.

SIF-410 - Pack palletizing station
This station is in charge of palletizing packs prepared in previous stages of the process.

SIF-411 - Pack pallet labelling
This station dispenses NFC labels and prints bar codes on them in continuous movement.

SIF-412 - Pack pallet dispatching station
The function of this station is the dispatching of completed pack pallets for the delivery to the customer.

SIF-413 - Recycling station
The station allows the solid raw material used during the process to be stored and recycled.

SIF-414 - Autonomous Mobile Robot
This device helps in the transportation of various materials in the SIF-400 system at the request of the user.

All the stations has the following common features: Extruded aluminium base structure, capacitive HMI display, stainless steel front with on / off switch and emergency pushbutton, conveyor system with RFID / BCR / NFC*, electric actuators*, industrial controller with OPC UA server and distributed I/O and energy meter with wireless transmission (emitter).

Documents for Download:

SIF-400 Process

How does the SIF-400, the training system for Industry 4.0, work?

The SIF-400 training system simulates a highly automated Smart Factory, including Industry 4.0 technologies, advanced manufacturing concepts and the reality of the connected enterprise. This video shows the complete SIF-400 system working, explaining each station functionality and the flexibility that the equipment provides.

SIF-400

The Training System for Industry 4.0 – Are you ready?

DIGITALIZATION is changing our life. EDUCATION is key to being prepared in this new reality
