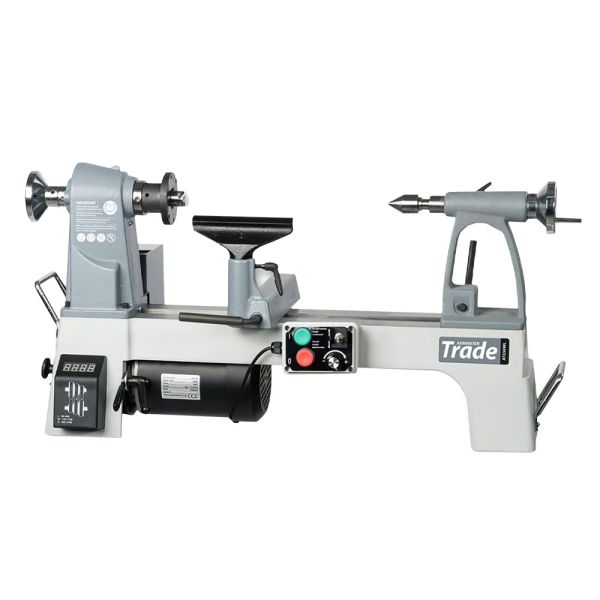

AT350WL
The AT350WL utilises the very reliable inverter technology usually found on much larger machines.
Top Key Features
- Heavy cast iron construction gives strength and low vibration
- Inverter drive controls the motor speed and torque
- LED spindle speed read-out in rpm for great control
- Forward and reverse capability, perfect for final sanding
Overview
The AT350WL utilises the very reliable inverter technology usually found on much larger machines. Electronic variable speed is a desirable feature for woodturners, enabling fine tuning of speed to suit delicate work, larger diameters or out of balance work pieces.
A three step poly-V pulley system allows three speed ranges which coupled with the load sensing inverter ensure maximum torque and stable spindle speeds. The magnetic backed switch unit can be placed on any convenient position on the lathe bed or headstock to suit the work in hand. It incorporates on/off buttons, a speed control knob and a forward and reverse switch.
An LED digital read-out of the spindle speed in RPM is a useful feature that helps control your work. dependent on the type of centres or accessories used.
Key Features
- Heavy cast iron construction gives strength and low vibration
- Inverter drive controls the motor speed and torque
- LED spindle speed read-out in rpm for great control
- Forward and reverse capability, perfect for final sanding
- Versatile magnetic switch mounting for optimum positioning
- 24 position spindle indexing, position held by magnetic dowel pin
- Supplied with Axminster drive and revolving tailstock centres
Dimensions
| Length: | 430 mm |
|---|---|
| Width: | 830 mm |
| Height: | 330 mm |
| Weight: | 41 kg |
Technical Specifications
| Diameter over bed: | 350 mm (max) |
|---|---|
| Electrical: | Power 750 W Voltage 230 V |
| Headstock Taper: | 2 MT |
| Rating: | Trade |
| Speed: | 80 - 800/ 170-1,700 / 350 - 3,700 rpm (var) |
| Spindle Thread: | M33 x 3.5 mm |
| Tailstock Taper / Chuck: | 2 MT |
| Tool: | Tool Post Diameter: 24.4 mm (1”) |
