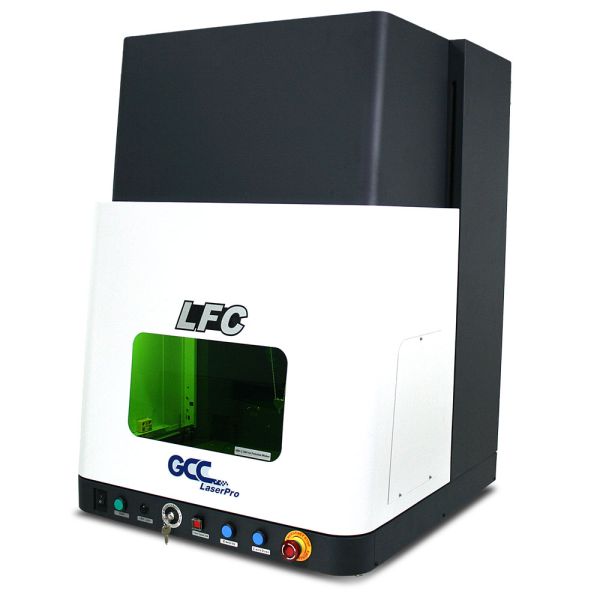

GCC LFC D Desktop Laser Marker Workstation
Categories: Workshop Equipment , Laser Machines , Workshop Equipment , Laser Machines , Vinyl Cutters / Plotters , GCC Vinyl Cutters / Plotters & Laser Markers , All GCC Products
GCC LaserPro LFC D is a desktop workstation for laser markers. The industry-level equipment has many advanced features such as an anti-trapping door, key switch, user-level control, etc., and meets customers' needs completely.
Top Key Features
- Standard Table
- Automatic and Anti-Trapping Safety Door
- Electronic Z axis
- Internal Illumination
Overview
GCC LaserPro LFC D is a desktop workstation for laser markers. The industry-level equipment has many advanced features such as an anti-trapping door, key switch, userlevel control, etc., and meets customers’ needs completely.
LFC D Desktop Laser Marker Workstation is considered a class 1 device to keep operators safe and sound and, therefore, the best industrial solution.
Key Features
- Standard Table
- Automatic and Anti-Trapping Safety Door
- Electronic Z axis
- Internal Illumination
- Emergency Stop
- Key Switch
- MultiFOCUS Function (Optional)
Dimensions
| Model No | LFC D | |||
| Dimension (L x W x H) | 750 x 700 x 1000 mm | Â 940 x 1020 x 1470 mm (with package) | ||
| Nett Weight | 100 kg | |||
| Gross Weight | 180 kg | |||
| Â | ||||
| Max. work piece size | ||||
| Standard Table - C-Series | ||||
| Lens | Scan Area | Max. Work Piece Size | ||
| Length | Width | Height | ||
| 10 | 10 x 10mm | 550mm | 360mm | 577mm |
| 50 | 50 x 50mm | 543mm | ||
| 70 | 70 x 70mm | 514mm | ||
| 140 | 140 x 140mm | 390mm | ||
| 140DL | 140 x 140mm | 337mm | ||
| Standard Table - IF Series | ||||
| Lens | Scan Area | Max. Work Piece Size | ||
| Length | Width | Height | ||
| 70 | 70 x 70mm | 550mm | 360mm | 485mm |
| 110 | 110x110mm | 305mm | ||
| 180 | 180x180mm | 304mm | ||
| 300 | 300 x 300mm | 53mm | ||
| 300 (3DS) | 300 x 300mm | 335mm | ||
Technical Specifications
| Model No | LFC D | |||
| Available Laser Marker | CIIA 12/30, CIIP12/30, CIIS 12/30 | |||
| IFII 20/30/50RMZ, IFII 20SHS, IFII 20/30/50JFL | ||||
| IFIIS 20/30/50JFL, IFIIS 30/60JML | ||||
| 3DS | ||||
| Scan Field | Max. 300 x 300 mm | |||
| Working Table Size | 550 x 360 mm | |||
| Front Door | Automatic door | |||
| Max. Loading (Z-axis Table) | 25 kg | |||
| Z-axis Travel | 80 - 620 mm | |||
| Safety Class | Class 1 laser product compliant with EN-60825-1 Class 2 laser product compliant with CDRH | |||
| Software | G-Mark / MM3D | |||
| Operation System | Win 7 / 8 / 10 / 11 | |||
| Power Supply | AC Auto Switching 115 / 230V, 50-60Hz / Single Phase | |||
| Power Consumption | Max. 1240W | |||
| Operating Temperature | 15°C ~35°C | |||
| Operating Humidity | 10 ~ 80% Non condensing | |||
| Optional Item | Rotary Attachment | |||
| MultiFOCUS | ||||
| Air Extraction System | ||||
*Speed does not equal to throughput. See dealer or visit www.gccworld.com for more details.
** File transmission at USB 2.0 Full Speed rate.
Optional Items
Rotary Attachment - Marker
The rotary attachment unit allows for precise 360° marking on round, cylindrical, or torus-shaped objects. The unit flexibly accommodates objects with external diameters up to 81 mm, internal diameters up to 70 mm, and weight up to 5kg. External marking on torus-shaped objects, such as a ring, is simple and precise with the included ring stick.

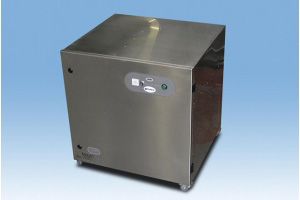

Fume Extraction System
The Fume Extraction Systems are specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process.
MultiFOCUS
MultiFOCUS function allows user to set multiple focus distances setting at once according to the object height. Z-axis will automatically adjust correctly so users do not need to set focal distance multiple times.
GCC LFC D Desktop Laser Marker Workstation Features
Standard Table
550x360mm Standard Table with matrix M6 circular slots for fixture mounting; work piece setup could not be easier than this.

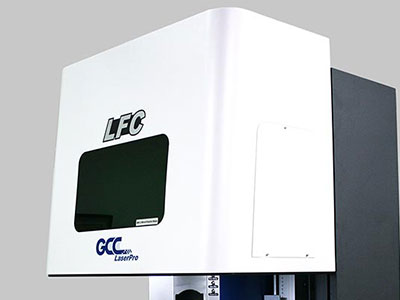

Automatic and Anti-Trapping Safety Door
Automatically controlled front door opens and closes to secure safe operation.

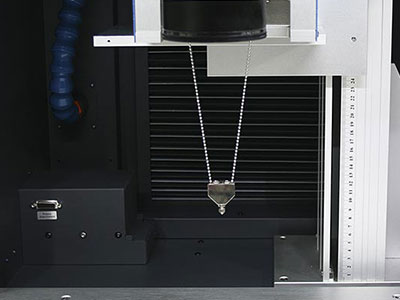

Electronic Z axis
Electronically controlled Z up and down buttons make it easy to fine tune the focus.
Internal Illumination
LED illuminates the working space for clear view of work in process.

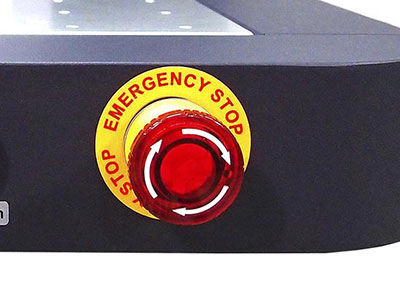

DuraGuide
Big red button on the right of machine allows operators to stop the laser and AC power immediately for much safer operation.

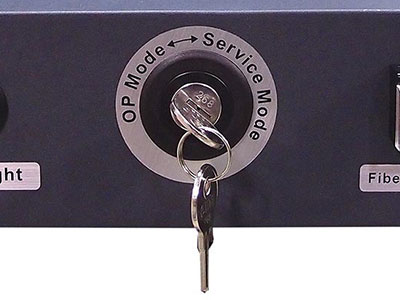

Key Switch
Key Switch manages different authority levels between Service Mode and Operator Mode to prevent unauthorized access to the production setups.

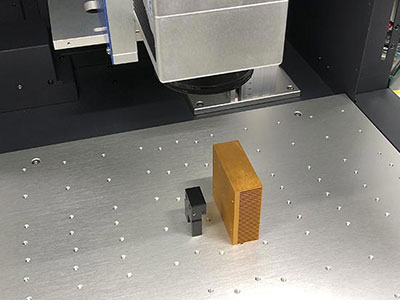

MultiFOCUS Function (Optional)
MultiFOCUS function allows user to define multiple focal distances at once according to the object height and Z-axis automatically adjusts accordingly, eliminating the frequent needs to set focal distance.
