Disk Sander - AT305BDS
Categories: Education , Workshop Equipment , Sanders & Bandfacers , Disc & Orbital Sanders , Workshop Equipment , Sanders & Bandfacers

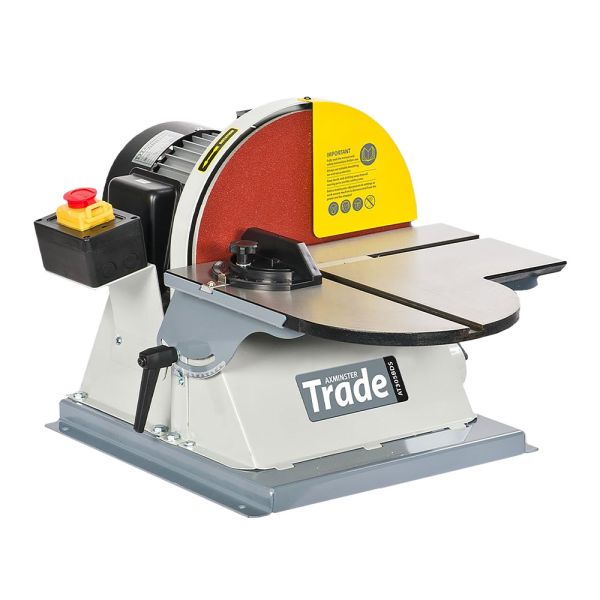

This 305 mm bench mounted disc sander has a cast iron table, steel quadrant guard and fabricated steel plate construction throughout.
Top Key Features
- Bench mounted 305mm disc sander with mechanical brake
- Cast iron table with simple and positive table adjustment
- Steel quadrant guard, 550W induction motor
Overview
This 305 mm bench mounted disc sander has a cast iron table, steel quadrant guard and fabricated steel plate construction throughout. Table adjustments are simple and positive, and there is an accurate mitre fence provided for end-grain sanding, either straight or angled. Dust is extracted via a well-positioned 63 mm diameter outlet.
Key Features
- Bench mounted 305mm disc sander with mechanical brake
- Cast iron table with simple and positive table adjustment
- Steel quadrant guard, 550W induction motor
- Fabricated steel plate construction throughout
- Accurate mitre fence, 63mm diameter dust extraction outlet
- Euro-style dust shrouded no-volt-release switch
Dimensions
| Length: | 671 mm |
|---|---|
| Width: | 445 mm |
| Height: | 410 mm |
| Weight: | 32 kg |
| Table Size: | 400 x 225 mm |
| Table Tilt: | 0° - 45° |
Technical Specifications
| Diameter: | 305 mm (Abrasive Disc Diameter) |
|---|---|
| Dust Extraction Outlet: | 63 mm |
| Electrical: | 230 V |
| Speed: | 1,425 rpm |
