Double Ended Polisher Chamois - CH Series
Categories: Education , Workshop Equipment , Grinders, Polishers & Linishers , Polishers , Workshop Equipment , Metalworking , Metalworking , Grinders, Polishers & Linishers

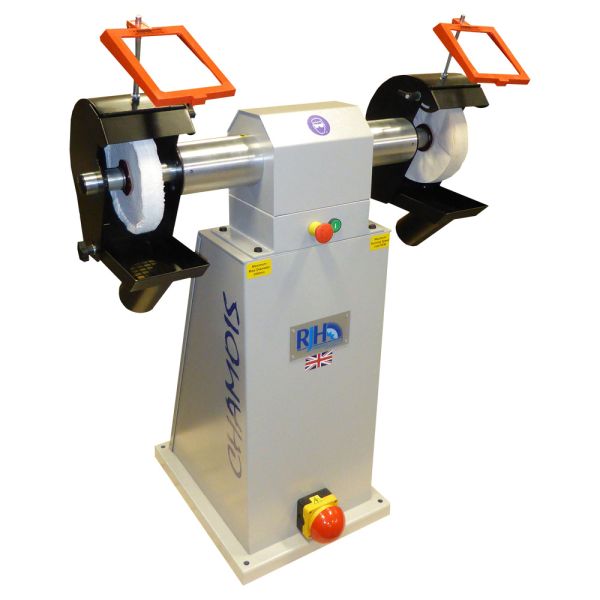

The RJH CHAMOIS Double-Ended Polisher has been designed to meet strict performance and safety criteria, and is ideal for use in schools and colleges.
Top Key Features
- Bench, pedestal or dust extraction mounted
- Taper adaptors for use with polishing mops, finishing wheels or wire brushes
- 1500 or 3000rpm versions
- Heavy duty adjustable polycarbonate eye shields
Overview
The RJH CHAMOIS Double-Ended Polisher has been designed to meet strict performance and safety criteria, and is ideal for use in schools and colleges. The Chamois complies with UK COSHH regulations, the European Machinery Directive and with the BS 4163:2014 “Health and Safety for Design and Technology in schools and similar establishments” regulations.
All RJH education machines carry a 24 month warranty and are supplied with an operating manual.
Key Features
- Bench, pedestal or dust extraction mounted
- Taper adaptors for use with polishing mops, finishing wheels or wire brushes
- 1500 or 3000rpm versions
- Heavy duty adjustable polycarbonate eye shields
- Excellent workpiece access
- Supplied with two 200 x 25mm mops – one loose leaf and one stitched calico
Dimensions
Technical Specifications
1-PHASE
| PART NO | Dust Extraction | PEDESTAL | BENCH | ||||
| Model: Non-Brake Machine | CH2001SE | CH2003SE | CH2001SP | CH2003SP | CH2001S | CH2003S | |
| Model: Braked Machine | CH2001SE-02 | CH2003SE-02 | CH2001SP-02 | CH2003SP-02 | CH2001S-02 | CH2003S-02 | |
| Motor Speed | 1415 rpm | 3000 rpm | 1415 rpm | 3000 rpm | 1415 rpm | 3000 rpm | |
| Motor | 1.1 kw | ||||||
| Electricals | 230V / 1ph / 50Hz | ||||||
| Mop Size | 200mm diameter x 25mm wide | ||||||
| Spindle | 20 mm diameter | ||||||
| Weight | 95 kg | 69 kg | 45 kg | ||||
3-PHASE
| PART NO | Dust Extraction | PEDESTAL | BENCH | ||||
| Model: Non-Brake Machine | CH2001TE | CH2003TE | CH2001TP | CH2003TP | CH2001T | CH2003T | |
| Model: Braked Machine | CH2001TE-02 | CH2003TE-02 | CH2001TP-02 | CH2003TP-02 | CH2001T-02 | CH2003T-02 | |
| Motor Speed | 1440 rpm | 3000 rpm | 1440 rpm | 3000 rpm | 1440 rpm | 3000 rpm | |
| Motor | 1.1 kw | ||||||
| Electricals | 400V / 3ph /50Hz | ||||||
| Mop Size | 200mm diameter x 25mm wide | ||||||
| Spindle | 20 mm diameter | ||||||
| Weight | 95 kg | 69 kg | 45 kg | ||||
