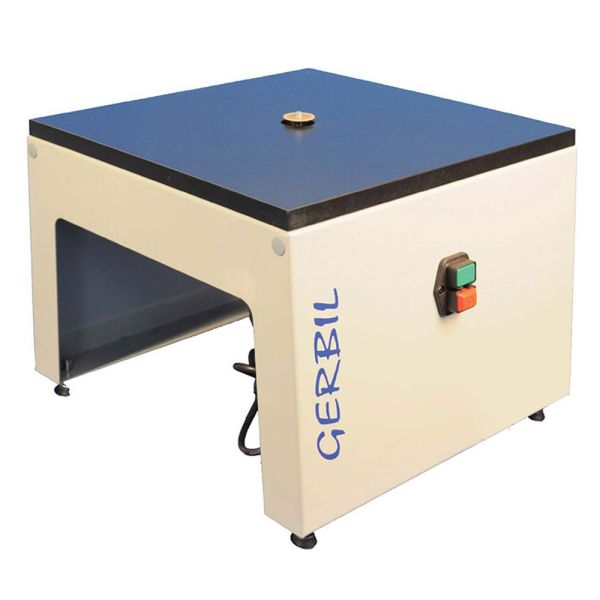

GERBIL - Vacuum Form, Trimming & Finishing Machine

The Gerbil is a unique patented machine designed for use by students in Design and Technology workshops in schools and colleges.

Top Key Features

  • Gerbil 2010

    • 400 x 455mm MDF table top
    • Multi tool arbor
    • Tungsten carbide abrasive disc and holder
    • Tool height adjustment facility
    •

    Gerbil 2020 (as for 2010) plus:

    • Adjustable 0° to 10° metal tilting table
    • Adjustable guide fence
    •

    Gerbil 2030 (as for 2020) plus:

    1. A customised Gerbil Trolley
    2. A Drum Sander with template, for creating draft angles on wooden vacuum form moulds

Overview

The Gerbil is a unique patented machine designed for use by students in Design and Technology workshops in schools and colleges.

The Gerbil complies with the European Machinery Directive and with the BS 4163:2007 “Health and Safety for Design and Technology in schools and similar establishments” regulations. All our education machines carry a 24 month warranty and are supplied with an operating manual.

Key Features

Gerbil 2010

  • 400 x 455mm MDF table top
  • Multi tool arbor
  • Tungsten carbide abrasive disc and holder
  • Tool height adjustment facility
  • No-volt release switch
  • Underside deflector plate to prevent motor access
  • No access to sharp cutting edges



Gerbil 2020 (as for 2010) plus:

  • Adjustable 0° to 10° metal tilting table
  • Adjustable guide fence
  • Large diameter hand wheel for tool height adjustment
  • Dust extracting fence incorporating tool guard
  • A Full Tool Kit



Gerbil 2030 (as for 2020) plus:

  1. A customised Gerbil Trolley
  2. A Drum Sander with template, for creating draft angles on wooden vacuum form moulds

Dimensions

Weight:2010: 19 kg 2020: 21 kg 2030: 44 kg

Technical Specifications

Electrical:Electrical Supply: 230V / 1 ph / 50 Hz - or - 110V / 1 ph / 50 Hz
Cutter Size:(D x W) 17 x 17 mm (Flange)
Disc Size:(D x W) 32 x 1 mm (TC Disk)
Motor:

Motor    0.07 kw

Motor Speed    1380 rpm

Wheel Size:30 mm x 15 mm - & - 15 mm x 20 mm (Flap)
