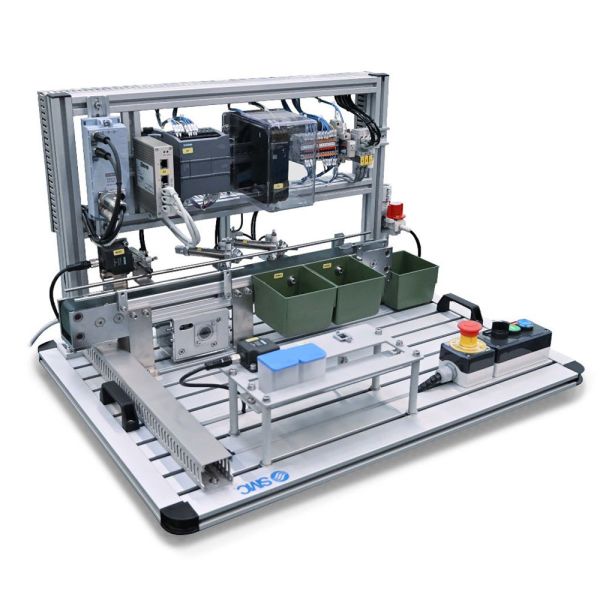

LOG-200 - RFID logistics trainer
LOG-200 is focused on studying RFID technology in a logistics application, using only industrial components. It also includes a Web server that can access the system over the Internet.
Top Key Features
- Includes a web server to access system remotely
- Compact and easy to use
- 2 Different software applications
- RFID read/write module
- RFID controller
- Designed & built with industry relevant components
Overview
LOG-200 is focused on studying RFID technology in a logistics application, using only industrial components. It also includes a Web server that can access the system over the Internet.
LOG-200 displays the information contained in each “tag” through the RFID controller and the PLC sends the right information to each actuator to place each container in its correct location. In addition, information for each object can be accessed over the Internet by means of a Web server that communicates with the PLC.
Key Features
- Includes a web server to access system remotely
- Compact and easy to use
- 2 Different software applications
- RFID read/write module
- RFID controller
- Designed & built with industry relevant components
Dimensions
| Dimensions: | 770 x 590 x 450 mm |
|---|
Technical Specifications
| LOG-200 770 x 590 x 450mm | MODULES | SENSORS (type & qty) | INPUT / OUTPUT |
| Writing zone Reading zone Expedition | RFID (x2) | Digital 3/4 | |
| OTHER DEVICES (qty) | ACTUATORS (type & qty) | ||
| RFID concentrator (x1) Web server (x1) Hub (x1) Circular tag (x5) Rectangular tag (x10) | DC motor (x1) Pneumatic linear (x3) | ||
Relevant Technologies
- Electrical panel
- Electric motors
- Identification system
- Industrial communication
- SCADA / HMI
Kits
| REF | DESCRIPTION |
| SAI2961 | LOG-200 with Schneider PLC |
| SAI2963 | LOG-200 with Omron PLC |
| SAI2964 | LOG-200 with Siemens PLC |
| SAI2965 | LOG-200 with Allen Bradley PLC |
RFID Devices
- RFID read/write module - it enables reading and writing information in each of the tags.
- RFID Controller - It brings together and manages up to 3 RFID stations.
- “Tags” - They store the relevant information to maintain the traceability of objects.
Software Applications
Web server software - it can set up a website to track the object’s traceability over the Internet.
SCADA software - sets up a remote application to read/write information on RFID tags.
General elements of the equipment: anodised aluminium structure, control keypad, solenoid valve block, labels for cables, electric connection terminals, power supply, air treatment unit, speed controllers, control PLC* and user manual.
*Options: PLC Omron, Allen Bradley, Schneider, Siemens or without PLC.
-

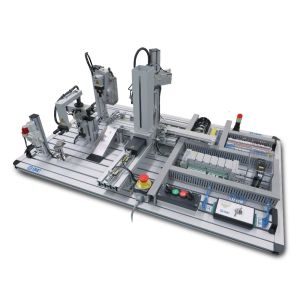

MAS-200 - Modular assembly systemMAS-200 is a modular training system which emulates a real industrial assembly... - MAP-200 - Handling systemsThe MAP-200 series consists of seven independent and different training...
- ATM-200 - Automation training systemATM-200 is a set of 3 separate stations, fully assembled, built entirely of...

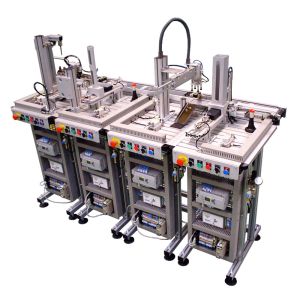

- FAS-200 - Flexible assembly systemFAS-200 is a flexible and compact assembly system which includes industrial...
