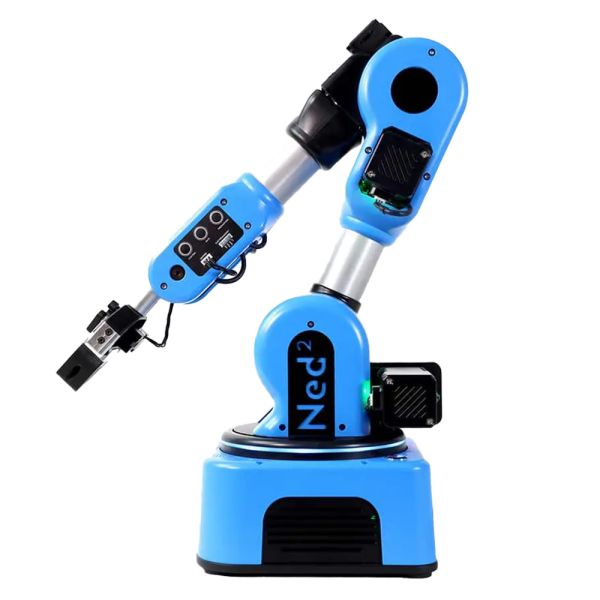

Niryo Ned 2
Ned 2 is a 6-axis robotic arm inspired by industrial for educational market. It is used by teachers from community colleges, technical schools, universities high schools and professionals to practise and learn multiple learnings from basics to expert level.Â
Ideal for developing skills including:
- 300g payload
- 6 Axis robotic arm
- ±0.5mm accuracy
- Ergonomic control panel
- Flexible back panel
- LED ringlight feedback
Overview
Ned 2 is a 6-axis robotic arm inspired by industrial for educational market. It is used by teachers from community colleges, technical schools, universities high schools and professionals to practise and learn multiple learnings from basics to expert level.Â
Built with a sturdy metal chassis and high-quality components, Ned2 guarantees durability and reliable performance over time, making it perfect for the demands of educational environments.
Key Features:
- 300g payload
- 6 Axis robotic arm
- ±0.5mm accuracy
- Ergonomic control panel
- Flexible back panel
- LED ringlight feedback
- Slient stepper technology
- Snaplink magnet system
- Plug and Play usability
- 3 Digital Onputs
- 2 Analog Inputs
- 2 Analog Outputs
- Compatable with large selection of program languages
- Open source tech led

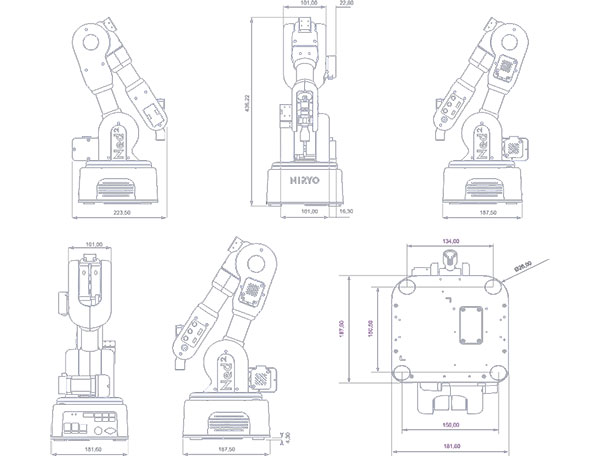

Dimensions
| Length: | 187, 60 mm |
|---|---|
| Width: | 181, 60 mm |
| Height: | 436, 22 mm |
| Weight (Gross): | 7 kg |
Technical Specifications
| Connectivity: | Ethernet - 1GB/s Wifi - 2,4GHz & 5GHz USB - 2.0 - 3.0 |
|---|---|
| Electrical: | Robot: 15Volts /7A Input: AC100 - 240V; 50-60Hz Output: DC 12V-7A; 5V-7A |
| Features: | Payload - 10.5 oz Repeatability - +-0.5mm |

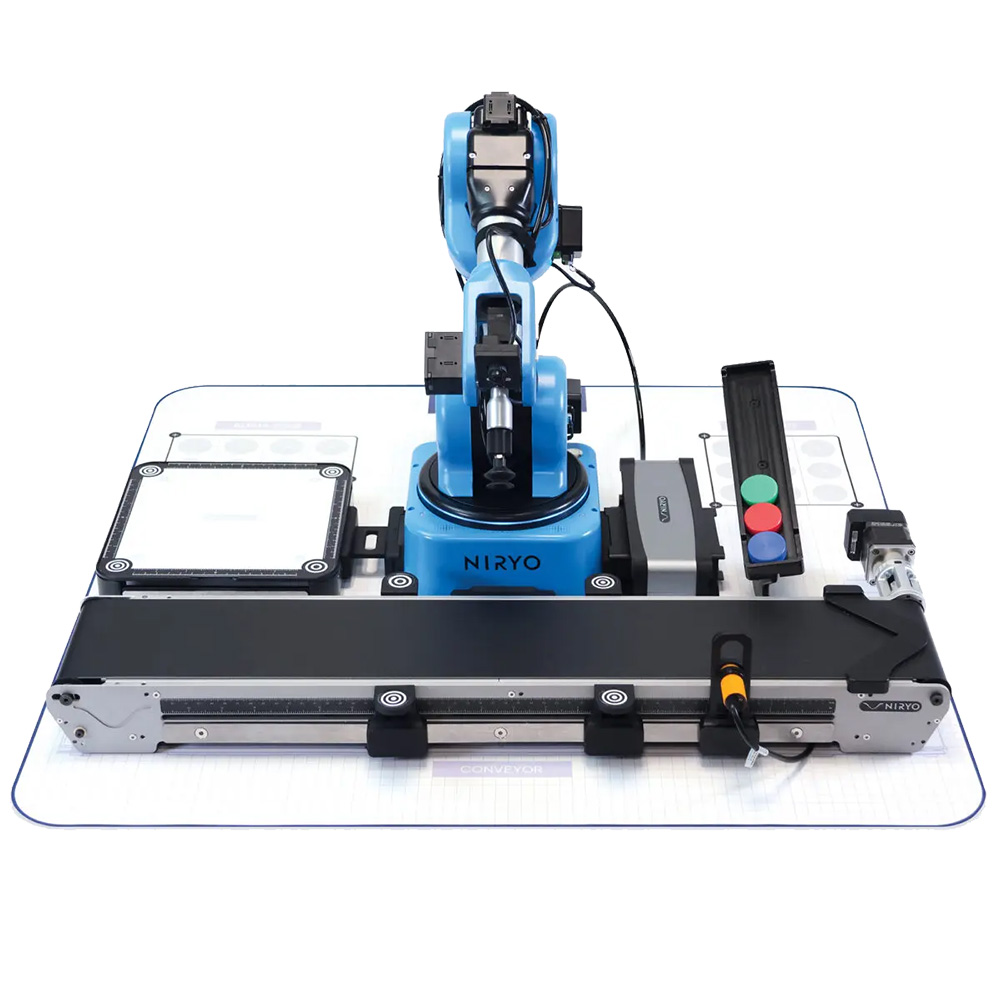

Bundle Discovery Plug & Play education robotics solution
The perfect pack to teach with a plug & play solution and an entire ecosystem to explore unlimited possibilities. Comes with a vacuum pump and gripper, conveyor belt and vision system. Available as a bundle with or without the Robot arm.
Optional Equipment
Player One
With the Player One, you can easily start your robot programs directly from a physical controller, without using Niryo Studio.Â
Adaptive Gripper
Perfect for fragile objects, or when the shape is not regular. Be sure that the object will be correctly caught in the center of the gripper.
Custom Gripper
This gripper has 3D printed jaws that are screwed and mounted on the end effector.
Converyer Belt
Conveyor belt is the perfect accessory to teach industry 4.0 cases studies with high precision and strenght belt.Â
Vision set
Detect objects, select the ones you want to interact with. Comes with a camera and objects of different shapes and colors to allow you to study topics such as image recognition, machine learning and Artificial Intelligence thanks to the contribution of vision.
Vacuum Pump
The pump developed by Niryo is quiet, plug&play connection, and has the same efficiency as a normal vacuum pump, for the same price. A servomotor activates a syringe that will suck the air to catch the object.
Electro Magnet
With this electromagnet you can easily pick and place small metal parts (or several at a time), which may be impossible with other grippers, especially for very small parts.
Niryo Ned 2
Ned2 is a six-axis collaborative robotic arm intended for Education, Research and Prototyping purposes. Developed to make robotics accessible to everyone, Ned2 can help teach robotics, programming, mechanical engineering and industry 4.0 & industry 5.0 related courses.
Ned & Ned2
Use Ned and Ned2, Niryo's cobots, to prototype an automation within the production line process such as a quality checking process or a labelling process. In this pick & place use case, Ned grasps a lid thanks to its electromagnet, places the lid on a surface where a second automation can start from, such as quality control, glue dispensing, printing, etc. The robot then places the lid at a defined location
-
