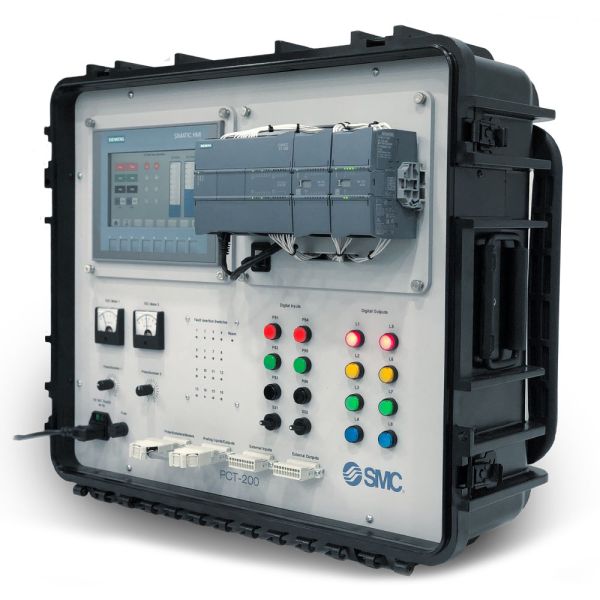

PCT-200 - Programmable controller trainer
This system is designed to provide a solution for hands-on activities in the areas of automation technologies, including programmable controllers, digital I/O, analog I/O and human machine interface.
Top Key Features:
- Available in mobile suitcase or tabletop format
- Quick change capability from one brand controller to another within one system
- Connection for use with external devices & applications
- Covers 15 base topics in detail
- Designed & built with industry relevant components...
Overview
This system is designed to provide a solution for handson activities in the areas of automation technologies, including programmable controllers, digital I/O, analog I/O and human machine interface.
This unit is provided in a hard-shell suitcase with integrated casters and handle. There is also a table top option. The unit includes 2 external connection blocks that allow any external I/O devices to be connected directly to the controller.
Key Features:
- Available in mobile suitcase or tabletop format
- Quick change capability from one brand controller to another within one system
- Connection for use with external devices & applications
- Fault insertion capability for troubleshooting
- Can be expanded to include other applications (traffic signals, sorting conveyor, electromechanical drive, PID temperature & pressure)
- Covers 15 base topics in detail
- Designed & built with industry relevant components
Dimensions
| Dimensions: | 530 x 610 x 330 mm |
|---|---|
| Weight: | 22.7 kg |
Technical Specifications
Topics Covered
- Introduction to PLCs
- Controller Communications
- PLC Project Development
- Monitoring Input/Output Data
- PLC Addressing
- Relay Type, latching, timer, counter Instructions
- Math, Data Manipulation Instructions
- Program Control Instructions
- Analog Devices
- Introduction Human Machine Interface
- HMI Communications
- HMI Project Development
- Screen Creation and Navigation
- Text, Button and Switch Objects
- Numeric Displays and Entry
1. Controller Options
- AB Micro 800
- AB MicroLogix 1400
- AB CompactLogix
- Siemens S7-1200
- Siemens S7-1500
- Siemens S7-300
- Omron CP1
- Mitsubishi FX-3
- Automation direct do-more
- No PLC
2. HMI Options
- AB 7” Micro PanelView
- AB PanelView Plus 7”
- Siemens KTP-700 7”
- Omron NB 7”
- Mitsubishi GS 7”
- Automation Direct C-more
- No HMI
3. Software Options
- PLC software for AB option (To be included for controller option 03)
- PLC Software for Siemens Option (for controller option 06)
- HMI Software for AB Option (for HMI option 2)
- No Software
4. Fault insertion
- Fault insertion (incl in base)
5. Form Factor
- Table top frame
- Hard Shell Suitcase with Removable Lid, Casters and Pull Handle
6. PLC Application
- Traffic Signal Application
- Sorting Conveyor Application
- Electro-Mechanical Ball Screw Application
- PID pressure application
- PID temperature application
- No PLC application
PCT-200
If you need an all-in-one training platform for your students that covers the fundamentals of programmable controls including connection, communications and project development required for the control of automated processes, the PCT-200 from SMC delivers.
-
