HYDROMODEL-200 - Transparent Hydraulics

HYDROMODEL-200 meets the training needs of technology related to hydraulic components in a very visual way.

Top Key Features:

  • Transparent hydraulics - electro-hydraulics
  • Transparent methacrylate body with internal industrialmetal parts
  • Hermetic connections
  • Fixing to the panel
  • 3 standard kits

Overview

HYDROMODEL-200 meets the training needs of technology related to hydraulic components in a very visual way.

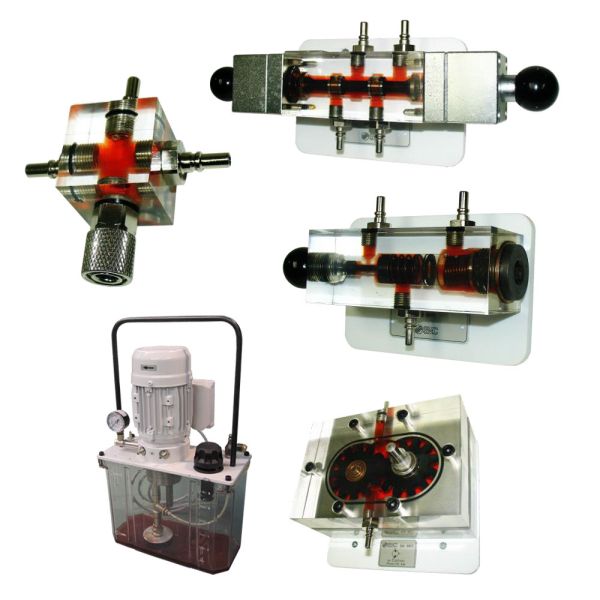

The parts are made up of a transparent methacrylate body with internal industrial metal parts. Using this system, it is possible to see inside the components as they operate, becoming familiar with them and understanding how they work

Key Features:

  • Transparent hydraulics - electro-hydraulics
  • Transparent methacrylate body with internal industrial metal parts
  • Hermetic connections
  • Fixing to the panel
  • 3 standard kits

Dimensions

Dimensions:Panel: 1150 x 760 x 25 mm
Total: 1200 x 800 x 1700 mm

Technical Specifications

TABLE / MOVING ASSEMBLY FRAME

The moving frame within the HYDROTRAINER-200 system has a double sided assembly panel with tables sufficiently large for performing practical work at ease on either sides. It is assembled on four wheels, two of which have a brake, which enables moving and holding it in the classroom simply and comfortably.
It includes a glass for volumetric measurements on each side of the panel. The lower section has a support shelf for holding the hydraulic powerpack and storage drawers for components.

HERMETIC CONNECTIONS

The hoses, as well as the different devices, are connected to each other with a system of quick-fit self-sealing connectors. This system guarantees a maximum level of tightness whereby ZERO DRIPPING occurs even during connection/ disconnection operations.

FIXING TO THE PANEL

Each component includes a fixing system devised in such a way as to aid the quick and simple preparation of the practical exercises.

Skills Development - Ideal

Ideal for skill development in the following areas:

  • Analysis in hydraulic technology
  • Hydraulics technology design
  • Technical document creation hydraulics
  • Technical document understanding hydraulics
  • Operation of hydraulics and sensors

Skills Development - Well Suited

Well suited to assisted skill development for:

  • Troubleshoot hydraulics
    Installation and assembly of hydraulic technologies

Standard Kits

REFDESCRIPTION CODE
MOD-201Transparent hydraulic level I kitSAI-9500
MOD-202Transparent hydraulic level II kitSAI-9501
MOD-203Transparent electro-hydraulic kitSAI-9502
