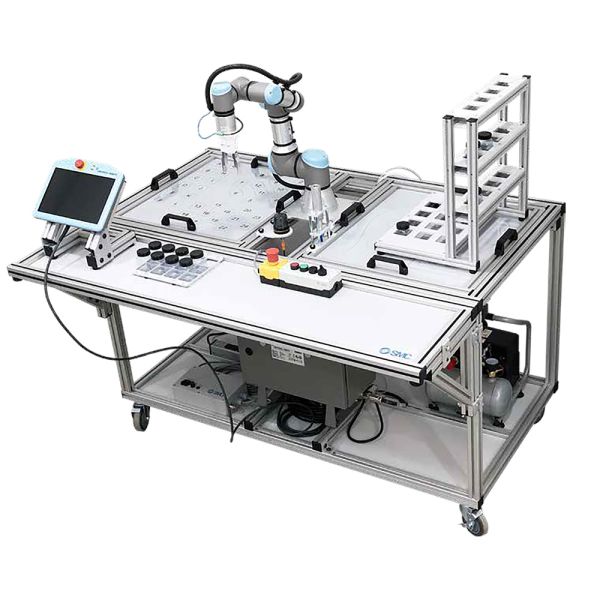

RTS-200 Robotic Operation
The RTS-200 training system provides participants with a hardware platform for performing hands-on development for robotic operations.
Ideal for developing skills including:
- Expanded work surface that quickly lowers for transporting through standard doors
- Can be purchased with any brand of robot
- Option to integrate existing robot or a new one
- Multiple modular applications to choose from for advanced integration
- Allows for addition of programmable controllers...
Overview
The Mechanical Training system provides participants with hardware allowing for hands-on experiments in mechanical shaft alignment, pulley alignment, belt installation, sprocket alignment, chain installation, gear
alignment practices and speed ratio’s.
Key Features:
- Expanded work surface that quickly lowers for transporting through standard doors
- Can be purchased with any brand of robot
- Option to integrate existing robot or a new one
- Multiple modular applications to choose from for advanced integration
- Allows for addition of programmable controllers
- Includes an open frame format for collaborative robots
- Can include a fence less format with safety scanner for non-collaborative robots
- Different smart gripper and robotic options
- Hands on development
- Expanded integration activities
Dimensions
| Dimensions: | TBA |
|---|
Technical Specifications
Optional Expanded Application
In addition to the basic installed applications mentioned in the previous point, this didactic equipment also has a series of optional applications with advanced activities that extend the learning objectives:
ELECTRO PNEUMATICS & PARTS TRANSFER
Utilise pneumatic actuators and sensors to transfer a part from one location to another
PART IDENTIFICATION & SORTING
Utilise various sensors to sort products according to material, dimensional measurement and quality.
PRODUCT APPLICATIONÂ
A user interface to provide an order which will be fulfilled by the robot.
VARIABLE SPEED CONVEYOR WITH SENSORS
A belt conveyor that can transport products to or from the robot working area
CNC MACHINE TRENDING
Simulates a CNC operation and a handshaking required between the robots and external machines.
PRODUCT ASSEMBLY APPLICATION
Allows the robot to retrieve parts from storage to build a complete product
PROGRAMMABLE CONTROLLERS & DISTRIBUTED IO
Allows connection to external controllers via digital io or networking using standard protocols such as ethernet, IP, Profinet and Modbus.
2D & 3D ARTIFICIAL VISION
Allows the use of vision sensors to identify and measure products and can also provide coordinates for robot guidance.
Each application panel can be quickly installed on the RTS system utilising prewired interfacer modules and cables.
Â
Included
- Mobile aluminium frame
- Power entry
- Robot and controller (integrated or prepared for integration)
- Operator control panel
 - Emergency stop
 - Push-buttons (start/stop) and selector - Integrated Pneumatic Package
 - Silent air compressor
 - Regulator and Shut-off Valve
 - Pressure Supply Manifold - Multi-colour Indicator Light
- SMC Pneumatic Gripper
- Base Application Packages:
 - Drawing and Writing
 - Pick and Place
 - Basic Palletizing
 - Basic Warehousing and Storage station
RTS-200
When course requires a solid foundation in robotics, the RTS-200 Robot Training System by AMC, covers the operation, connection, and programming of standard robots used in automated process.
RTS-200
The curriculum for our Robot Training System RTS-200 includes these 8 topics: Pneumatic Application and Part Transfer, Integrated Sensors for part material, size, color and quality detection, Production Application, Variable Speed Conveyor with Sensors, CNC Machine Tending,Assembly Application, Collaborative Assembly Application, Quality Control and Inspection
-
