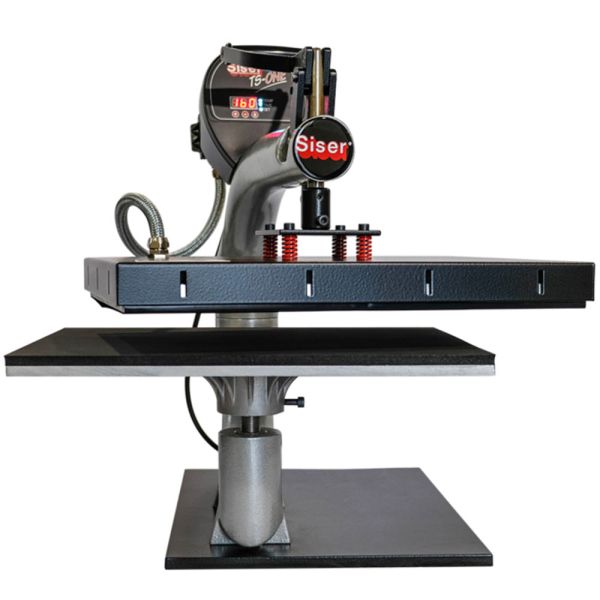

Siser TS-ONE Heat Press
The TS-ONE is Siser's most common heat press - this is a user-friendly machine, stable and solid, and opens both vertically and laterally in order to ensure very quick applications on any type of textiles.
Top Key Features
- Curved lower metal plate and curved upper heating plate
- Large work space
- Patented stucture designed for simple, reliable application
- Digital temperature display
- Audible alarm
Overview
The TS-ONE is Siser's most common heat press - this is a user-friendly machine, stable and solid, and opens both vertically and laterally in order to ensure very quick applications on any type of textile.
A digital display indicates the temperature of the higher plate, while the alarm reminds the user when the transfer is ready.
The TS-ONE machine, as it is equipped with electrical parts operating at a voltage between 50 V and 1000 V, is subject to the Low Voltage Directive 2014/35/UE (formerly 2006/95/CE ) and
the Electromagnetic Compatibility Directive 2004/108/CEE.
Since there are no motor-driven moving parts, as the movement of closure and opening of the plates is controlled by hand, the TS-ONE does not come within the field of application of the
Machinery Directive2006/42/CE. Nevertheless, the design and construction of the TS-ONE has been made in compliance with the essential safety requisites foreseen by Directive 2006/42/CE.
Key Features
- Curved lower metal plate and curved upper heating plate
- Large work space
- Patented stucture designed for simple, reliable application
- Digital temperature display
- Audible alarm
- Consistant pressure and heat across the platen
- Good for both small custom jobs and higher volume production
Dimensions
| Dimensions: | W55 x D65 x H66 cm |
|---|---|
| Weight: | 46kg |
Technical Specifications
| TS-ONE | |
| Dimensions (Closed) | W55 x D65 x H66 cm |
| Dimensions (Open) | W105 x D115 x H66 cm |
| Weight | 46kg |
| Power | 2000 watt |
| Voltage | 220 volt |
| Transfer area | 38 x 50 cm |
| Max Temp | 220°C |
| Platen options | platens for caps platens 15 x 15 cm platens for shoes platens 38 x 10 cm platens 30 x 15 cm |
Plates for caps
Interchangeable plates for heat applying onto caps.
The cap set consists of an upper heating plate and a lower, bent supporting plate.

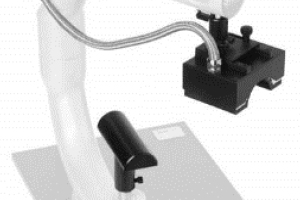

Plates for shoes
“Achille” platenfor heels of shoes
Interchangeable plates for heat applying onto shoes.
The cap set consists of an upper heating plate and a lower, bent supporting plate.

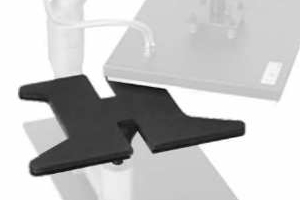

Lower platen H
Lower Platen
Interchangeable plates for heat applying of small logos and images.
Plates dimensions: cm. 15×15.
30cm x 15cm
38cm x 10cm
TS-ONE
How to change fuses on a TS One
TS-ONE regulate pin
How To Regulate the pin on TS One
