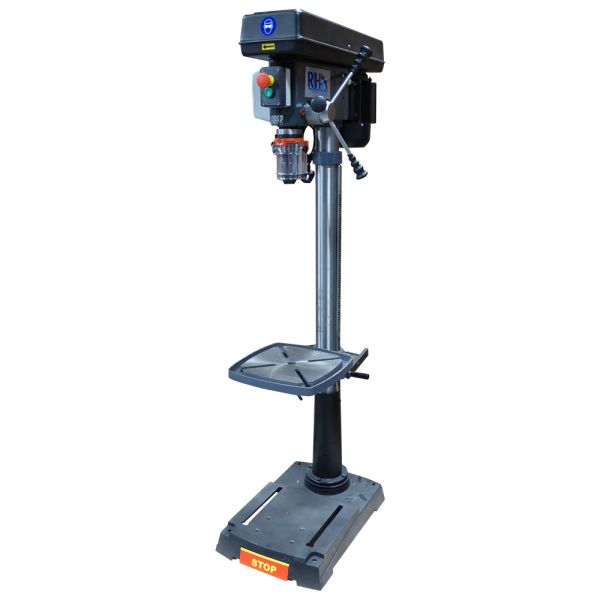

Flamefast Pedestal Drill Woodpecker - FLA-Woo

The Flamefast Woodpecker Drills are a range of high quality bench and pedestal pillar drills for varying levels of use in a D&T environments.

Top Key Features

  • Pedestal and bench models available
  • Aluminium drive pulleys
  • Wide range of spindle speeds
  • Motor power transmitted through two V-Belts

Overview

The Flamefast Woodpecker Drills are a range of high quality bench and pedestal pillar drills for varying levels of use in a D&T environments. Designed to meet strict performance and safety criteria they are ideal for use in schools and colleges. These machines are suitable for working on wood, acrylic or metal.

The Woodpecker complies with the European Machinery Directive and with the BS 4163:2007 “Health and Safety for Design and Technology in schools and similar establishments” regulations. All our education machines carry a 24-month warranty and are supplied with an operating manual.

Key Features

  • Pedestal and bench models available
  • Aluminium drive pulleys
  • Wide range of spindle speeds
  • Motor power transmitted through two V-Belts
  • Depth stop and scale indicator
  • Fitted with keyless chuck for hand operation
  • Precision chuck arbor
  • Cast iron control handle with soft grip
  • Thick walled drill column
  • Cast-iron work table with 14mm T-Grooves and full
  • 360 degree rotation, tiltable from –45° to +45°. Can also be used wet
  • Ratchet table height adjustment
  • Cast iron base with T-grooves

Dimensions

Width:450 mm
Height:1635 mm
Depth:700 mm
Dimensions:Work Table Size: 335 x 335mm
Weight:81 kg
Table Size:356 x 356 mm
Base Size:450 x 575 mm

Technical Specifications

Chuck Capacity:1-16 mm
Column Diameter:80 mm
Drilling Capacity / Performance:25 mm (max)
Drilling Depth:80mm (max)
Electrical:Electrics - 3 phase: 400V, 3ph, 50hz (FLA-WOO8203P)
Electrics - 1 phase: 230V, 1ph, 50hz (FLA-WOO8201P)
Motor:1.1 kw
No. Speeds / Number of gears:16
Speed:160 - 3000rpm (min/max)
Spindle Clearance:685 mm (max distance to spindle table)
Spindle Taper / Chuck / Seat:MT3

Optional Extras

  • Heavy duty drill vice
  • Keyswitch (not lockable)*
  • Keyed chuck and arbor (820 series only)*
  • Foot operated floor switch – includes remote mushroom head kick stop (latching) andarmoured cabling*
  • Switched downlight*


*Please note that these items are factory fitted at the point of manufacture



Safety Features

  • Microswitch on belt guard
  • No-volt overload push-button starter
  • All pedestal drills fitted with floor foot stop
  • Large adjustable telescopic chuck guards
  • Emergency stop
  • Lockable table
  • Low noise level
