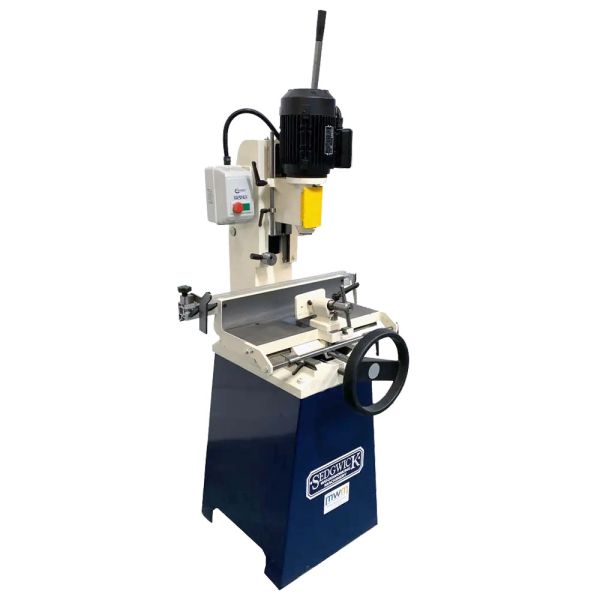

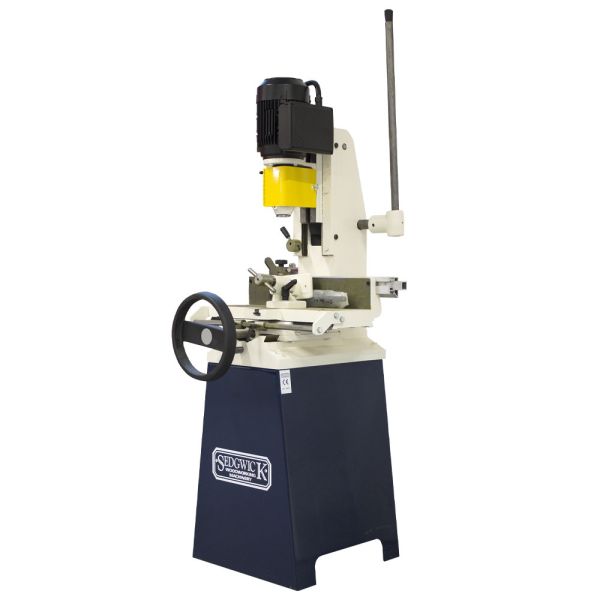

Morticer - Sedgwick Hollow 571
Designed over forty years ago, the Sedgwick 571 Morticer is probably the best-proven Morticer on the market. A cast iron base, column, table and slideways provide a rigid and durable mainframe assembly, onto which is mounted the cast iron chisel head and motor.
Top Key Features
- Designed for industrial use
- 1" Chisel capacity via 1.5Hp industrial rated motor
- Fully guarded 1/2" adjustable chuck Counterbalance weight for superior handling
- Single hand wheel control to longitudinal and lateral table movement
- Emergency Stop foot switch as standard
- Depth, haunch and length stops
Overview
Designed over forty years ago, the Sedgwick 571 Morticer is probably the best-proven Morticer on the market. A cast iron base, column, table and slideways provide a rigid and durable mainframe assembly, onto which is mounted the cast iron chisel head and motor.
All slide movements are easily adjusted by a single dovetail slide for ease of maintenance. The chisel head assembly is counterbalanced by a weight, giving fingertip control to the rise and fall eliminating the breakages associated with spring type mechanisms.
Key Features
- Designed for industrial use
- 1" Chisel capacity via 1.5Hp industrial rated motor
- Fully guarded 1/2" adjustable chuck Counterbalance weight for superior handling
- Single hand wheel control to longitudinal and lateral table movement
- Emergency Stop foot switch as standard
- Depth, haunch and length stops
- Front mounted table length stop bar, marking out rail included
- Two-position depth stop for haunching
- Will accept 13/16" and 1.3/16"shanked chisels
- Manufactured in the UK
Dimensions
| Length: | 735 mm |
|---|---|
| Width: | 630 mm |
| Height: | 1520 mm |
| Weight: | 169 kg |
| Table Size: | 500 x 160 mm |
Technical Specifications
| 1 Phase: | 1.1 kW 220-240V 50hz |
|---|---|
| 3 Phase: | 1.1 kW 380-420V 50hz |
| Chisel Size: | 19 mm - Max Hardwood 25 mm - Max Softwood |
| Chisel Stroke: | 120 mm |
| Motor: | 1.1 kW rating |
| Timber Capacity: | 255 x 200 mm |
| Timber Movement: | 430 mm longitude 80 mm latitude |
Additional Features
The table has longitudinal and lateral movement on a single hand-wheel control, not only for ease of operation but also for more precise positioning. Lateral adjustment of the table being better controlled by a central screw.
The angled timber clamp has three fixing positions giving a maximum timber width of 180mm. Coupled with the height adjustable chisel head which can give a maximum timber height of 255mm underneath the chisel, the Sedgwick 571 has exceptional capability for repetition work the table is fitted with longitudinal length stops, and the chisel head with a two position depth stop (for hunching), thus reducing ‘marking out’ time.
The 1.1Kw industrial fan cooled motor fitted with a 1/2" capacity adjustable chuck provides ample power for continuous duties. Unlike a collet type system, the adjustable chuck holds the auger firmly around its circumference, true to the centre line of the chisel, securing longer tool life and better cutting capability. The chuck is guarded with a hinged guard for safety. The switchgear has no volt release, thermal overload protection, and a mushroom headed stop button.
