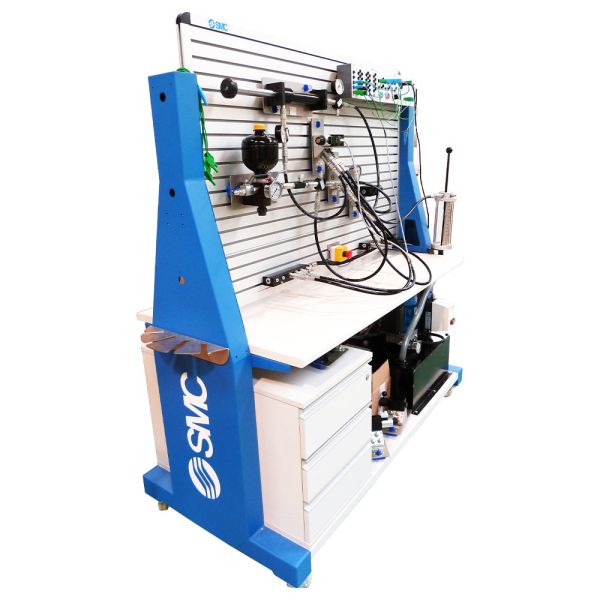

HYDROTRAINER-200 - Electro/Hydraulics
Designed using top-quality industrial materials it has everything required in order to start working from the very first day.
Top Key Features:
- Moving table assembly frame
- Large design for easy to work area
- Hermetic connections
- Fixing to the panel system
- Implements and controls hydraulic & electro hydraulic circuits
Overview
The Hydrotrainer-200 implements and controls hydraulic and electro-hydraulic circuits. Hydraulic drives continue to be used in numerous applications in automated industry.
With HYDROTRAINER-200 you will be able to meet all your training requirements in the technology related to these drives.
Designed using top-quality industrial materials it has everything required in order to start working from the very first day.
Key Features:
- Moving table assembly frame
- Large design for easy to work area
- Hermetic connections
- Fixing to the panel system
- Implements and controls hydraulic & electro hydraulic circuits
- Industrial components on panel fastening plate
- From basic hydraulics to proportional electrohydraulics
Dimensions
| Length: | 1681 mm |
|---|---|
| Width: | 800 mm |
| Height: | 1814 mm |
Technical Specifications
TABLE / MOVING ASSEMBLY FRAME
The moving frame within the HYDROTRAINER-200 system has a double sided assembly panel with tables sufficiently large for performing practical work at ease on either sides. It is assembled on four wheels, two of which have a brake, which enables moving and holding it in the classroom simply and comfortably. It includes a glass for volumetric measurements on each side of the panel. The lower section has a support shelf for holding the hydraulic powerpack and storage drawers for components.
HERMETIC CONNECTIONS
The hoses, as well as the different devices, are connected to each other with a system of quick-fit self-sealing connectors. This system guarantees a maximum level of tightness whereby ZERO DRIPPING occurs even during connection/ disconnection operations.
FIXING TO THE PANEL
Each component includes a fixing system devised in such a way as to aid thequick and simple preparation of the practical exercises.
Skills Development - Ideal
Ideal for skill development in the following areas:
- Analysis in hydraulic technology
- Hydraulics technology design
- Technical document creation hydraulics
- Technical document understanding hydraulics
- Operation of hydraulics and sensors
Skills Development - Well Suited
Well suited to assisted skill development for:
- Troubleshoot hydraulics
- Installation and assembly of hydraulic technologies
Standard Kits
| REF | DESCRIPTIONÂ | CODE |
| HYD-201 | Hydraulics level I kit | SAI-9506 |
| HYD-202 | Hydraulics level II kit | SAI-9507 |
| HYD-203 | Electro-hydraulics kit | SAI-9508 |
| HYD-206 | Proportional hydraulics: level I kit | SAI-9511 |
| HYD-207 | Proportional hydraulics: level II kit | SAI-9512 |
