HYDROMODEL-200

HYDROMODEL-200

Transparent Hydraulics and Electro hydraulics parts allowing students to view technologies at a glance. The Hydromodel-200 implements and controls hydraulic and electro-hydraulic circuits using parts made up of transparent methacrylate body with internal industrial metal parts. Continue reading

Specifications

  • Model HydroModel-200

More Info

Description

HYDROMODEL-200

The Hydromodel-200 meets training needs for technology related to hydraulic components in a very visual way.

The parts are made up of a transparent methacrylate body with internal industrial metal parts. Using this system, it is possible to see inside the components as they operate, becoming familiar with them and understanding how they work./p>

HERMETIC CONNECTIONS

The hoses, as well as the different devices, are connected to each other with a system of quick-fit self-sealing connectors NW4 1/8”. This system guarantees a maximum level of fluid integrity with ZERO LEAKAGE even during connection / disconnection operations.

FIXING TO THE PANEL

Each component includes a fixing system to aid quick and simple preparation of practical exercises.

Key Features

HYDROMODEL-200 comes up with different practical activities targeting skills as per below

Hydraulics

Analysis - suitable to develop skills in this technology

Troubleshooting - can help develop skills in the specific technology however there are other more appropriate products in the range

Designing - suitable to develop skills in this technology

Technical document creation - suitable to develop skills in this technology

Installation and assembly - can help develop skills in the specific technology however there are other more appropriate products in the range

Technical document understanding - suitable to develop skills in this technology

Operation - suitable to develop skills in this technology

Downloads

View FileHYDROMODEL-200

Videos

There are currently no videos available for the product.

Specifications / Additional Info

Hydromodel-200 - Standard Kits

HYDROMODEL-200 has 3 standard kits defined to cover training demands at different educational levels. Users can configure personalised sets to meet their own requirements or add to previously purchased equipment.

  • MOD-201: Transparent hydraulic level I kit - SAI9500
  • MOD-202: Transparent hydraulic level II kit - SAI9501
  • MOD-203: Transparent electro-hydraulic kit - SAI9502

Hydromodel-200 - Customised kits

The available hydraulic and electro-hydraulic components are listed below, by category.

  • assembly panel, hydraulic unit and extras
  • Actuators
  • Distribution valves
  • Pressure control valves
  • Flow valves
  • Connection parts and accessories
  • Control modules, sensors and electrical accessories

Case Studies

Extras / Parts

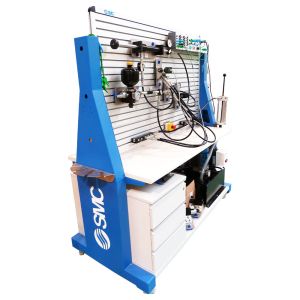

Hydrotrainer-200 - Extra Equipment

There are other products in the range to complement Hydrotrainer-200

  • autoSIM-200

    • autoSIM-200 is software that can design and simulate pneumatic, electro-pneumatic, hydraulic circuits, etc. It is also used for programming them plus monitoring and control of pre-defined 2D and 3D models.
