IPT-200 - Instrumentation & process control
Categories: Pneumatics & Hydraulics , Training Equipment , T Levels & Engineering , Process Control , SMC Training Systems

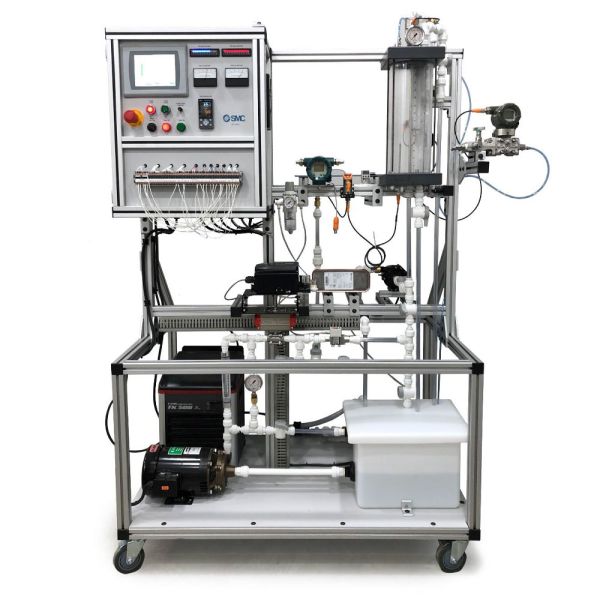

The Instrumentation and Process Control Trainer allows students performing hands-on experiments in Pressure, Flow and Level applications.
Top Key Features
- Allows for pressure, flow, level & temp activities
- Fits through standard doors
- Operates on 120V AC
- Includes a standard PID controller with software interface
- Uses standard industrial transmitters & valves
- Can be expanded to include any brand POC & HMI
Overview
The Instrumentation and Process Control Trainer allows students performing hands-on experiments in Pressure, Flow and Level applications. The systems unique design allows rapid conversion between Pressure, Flow and Level experiments by adjusting the position of valves. All devices are pre-wired to terminal strips allowing for quick circuit modification.
Activities in loop wiring, transmitter setup and loop tuning of PID parameters provide a thorough understanding of Process Control. The system is delivered in a mobile frame version and allows to include several add-ons.
Key Features
- Allows for pressure, flow, level & temp activities
- Fits through standard doors
- Operates on 120V AC
- Includes a standard PID controller with software interface
- Uses standard industrial transmitters & valves
- Can be expanded to include any brand POC & HMI functionality via valve position adjustment
- Allows for rabid conversion & modification of experiments
- Simple design with easy to follow hands on activities
- Designed & built with industry relevant components
Dimensions
| Dimensions: | N/A |
|---|
Technical Specifications
Topics Covered
- Trainer familiarisation
- System P&ID
- System Connections
- Operator Control Panel
- Single Loop PID Controller
- Trend Viewer
- Introduction to process control
- Open loop control
- Closed loop control
- Level measurement and level control
- Flow measurement and flow control
- Temperature measurement and temperature control (option)
Relevant Technologies
- Programmable controllers
- Industrial communication
- Motion control
- SCADA / HMI
1. Controller Options
- AB Micro 800
- AB MicroLogix 1100
- AB CompactLogix1
- Siemens S7-1200
- Siemens S7-1500
- Siemens S7-3001
- Omron CP1
- Mitsubishi FX-3
- Automation direct do-more
- No PLC
2. HMI Options
- AB 7” Micro PanelView
- AB PanelView Plus 7”1
- Siemens KTP-700 7”
- Omron NB 7”
- Mitsubishi GS 7”
- Automation Direct C-more
- No HMI
3. Software Options
- PLC software for AB option (To be included for controller option 03)
- PLC Software for Siemens Option (for controller option 06)
- HMI Software for AB Option (for HMI option 2)
- No Software
4. Trend Viewer
- Trend viewer/recorded option
- Not trend viewer
5. Fault Insertion
- Fault insertion
- No fault insertion
6. Add-Ons
- Sensors (On/Off Control)
- Smart (HART) DP transmitter
- Paddle wheel flow transmitter
- Venturi tube flow element
- Orifice plate flow element
- Pneumatic V-notch ball valve
- Pneumatic diaphragm valve
- Temperature add-on (Air)
- Temperature add-on (Water)
- Temp transmitter (HART)
- None
There are currently no files available for download
IPT-200
Instrumentation and Process Control Training System
For coursework requiring instrumentation and process control training the IPT-200 from SMC covers the operation, connection and configuration of instruments used to provide PID control of pressure, level, flow and temperature systems.
