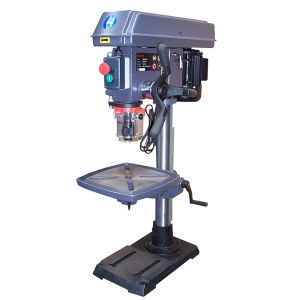

WOO82 Series
Categories: Education , Workshop Equipment , Drills , Pedestal / Pillar / Floor Drill , Bench / Portable Drill , Workshop Equipment , Woodworking , Woodworking , Drills
The Flamefast Woodpecker Drills have been designed to meet strict performance and safety criteria and are ideal for use in schools and colleges. These machines are suitable for working on wood, acrylic or metal.
Top Key Features
- Aluminium drive pulleys
- Wide range of spindle speeds
- Motor power transmitted through two V-Belts
- Depth stop and scale indicator
- Fitted with keyless chuck for hand operation
Overview
The Flamefast Woodpecker Drills have been designed to meet strict performance and safety criteria and are ideal for use in schools and colleges. These machines are suitable for working on wood, acrylic or metal.
The Woodpecker complies with the European Machinery Directive and with the BS 4163:2007 “Health and Safety for Design and Technology in schools and similar establishments” regulations. All our education machines carry a 24-month warranty and are supplied with an operating manual.
Key Features
- Aluminium drive pulleys
- Wide range of spindle speeds
- Motor power transmitted through two V-Belts
- Depth stop and scale indicator
- Fitted with keyless chuck for hand operation
- Precision chuck arbor
- Cast Iron control handle with soft grips
- Thick wall drill column
- Working table with 14mm T-Grooves and full 360 degree rotation
- Cast iron base with T-grooves
Dimensions
| Width: | Bench: 400 mm / Pedestal: 400 mm |
|---|---|
| Height: | Bench: 1100 mm / Pedestal: 1700 mm |
| Depth: | Bench: 700 mm / Pedestal: 700 mm |
| Dimensions: | Work Table Size: 335 x 335mm |
| Weight: | Bench: 80kg / Pedestal: 120kg |
Technical Specifications
| Chuck Capacity: | 3-16mm |
|---|---|
| Column Diameter: | 80mm |
| Drilling Capacity / Performance: | Max Drill Capacity: 20mm |
| Drilling Depth: | 80mm (max) |
| Electrical: | 400V/3ph/50hz or 230V/1ph/50Hz |
| Motor: | 0.75kw |
| No. Speeds / Number of gears: | 16 |
| Speed: | 160-3000rpm |
| Spindle Clearance: | 215mm |
| Spindle Taper / Chuck / Seat: | MT2 |
