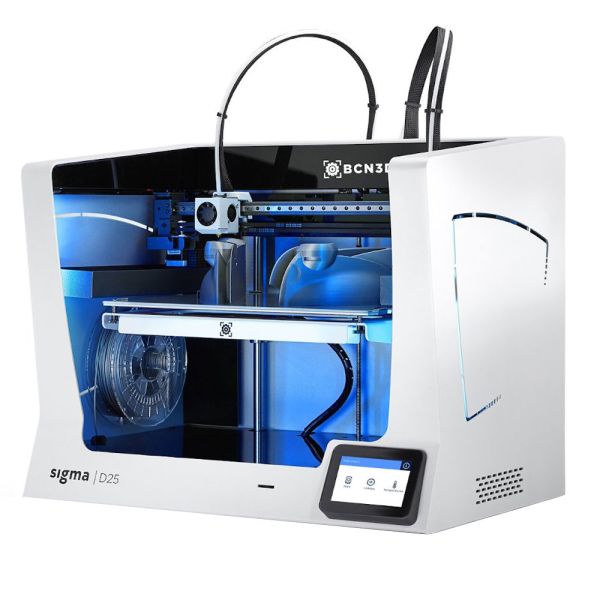

Sigma 3D Printer - BCN3D D25

Discover a new generation of our best-known 3D printer, engineered to grant maximum productivity through a hassle-free experience thanks to features like its massive print volume and full connectivity. Powered by our Independent Dual Extruder (IDEX) system, the Sigma D25 delivers functional prototypes quickly with quality and precision.

Top Key Features

Massive print volume 430x300x200
Sturdy aluminum frame
Full connectivity for offline/online printing
Bondtech(TM) high-tech dual drive gears for more control, sharper details & superior performance
FFF Technology (Fused Filamen

Enquire

Details

Overview

The Sigma D25 is equipped with the latest connectivity features. Easily send your print files when connected to the network for a hassle-free workflow. And forget about manual firmware upgrades thanks to Over The Air (OTA) updates, to ensure that your printer is always up to date (activated on demand).

An in-house desktop 3D printer is a revolutionary teaching tool for education. It encourages creativity and exposes students to professional tools used by a wide range of industries, which prepares them for the coming future.

Key Features

Massive print volume 430x300x200
Sturdy aluminum frame
Full connectivity for offline/online printing
Bondtech(TM) high-tech dual drive gears for more control, sharper details & superior performance
FFF Technology (Fused Filament Fabrication)
Various print modes
IDEX (Independent Dual Extruder System) Architecture
Open filament system for PLA, PVA, PET-G & TPU 98A
Multilingual 5” touchscreen
Filament runout sensor safety feature
Hotends designed to deliver smooth, reliable extrusions

Specifications

Dimensions

Dimensions:	690 x 530 x 550 mm (720 bowden)
Weight (Net):	30kg - (38 kg)
Build Volume:	420 x 300 x 200 mm

Technical Specifications

Certification:	CE / FCC
Connectivity:	Offline: SD card, Online: WiFi or Ethernet (BCN3D Cloud)
Display:	5” full color capacitive touchscreen
Electrical:	Input: AC 84-240V, AC 3,6-1,3A, 50-60Hz Power consumption 650W
Noise Level:	49 dB(A)
Supported Material:	PLA, Tough PLA, PET-G, TPU 98A, PVA
Warranty:	2 years (EU), 1 year (non-EU)
Controller / Electronics:	Single Board Computer: Toradex ARM Compute Module Motion Board: BCN3D Electronics with Independent Stepper Drivers
Extruder:	Extruder BondtechTM high-tech dual drive gears, Hotends optimized Extruder max temp 300 ºC
Filament:	Filament diameter: 2,85 ± 0,05 mm Open filament system
File Type:	Supported files: STL, 3MF, OBJ, AMF, DAE, ZAE, CTM, PLY, X3D, GLB, GLTF, *.gcode
Heated Bed:	Silicone thermal pad 80 ºC Max temp
Layer:	Recommended profiles: Layer height: 0,2mm \| 0,3mm \| 0,4mm (depending on nozzle diameter) Layer height 0,05mm - 0,5mm (custom profiles)
Nozzle Diameter:	Brass nozzle: 0,4mm (default) \| 0,8mm
Operating System:	Windows, Mac, Linux
Pring Head:	Independent Dual EXtruder (IDEX)
Printing Mode/s:	Single mode, Duplication mode Mirror mode, Multimaterial mode Soluble Supports mode
Print Technology:	Fused Filament Fabrication (FFF)
Software:	BCN3D Stratos
XYZ Step Size:	Positioning resolution (X / Y / Z): 1,25μm / 1,25μm / 1μm
