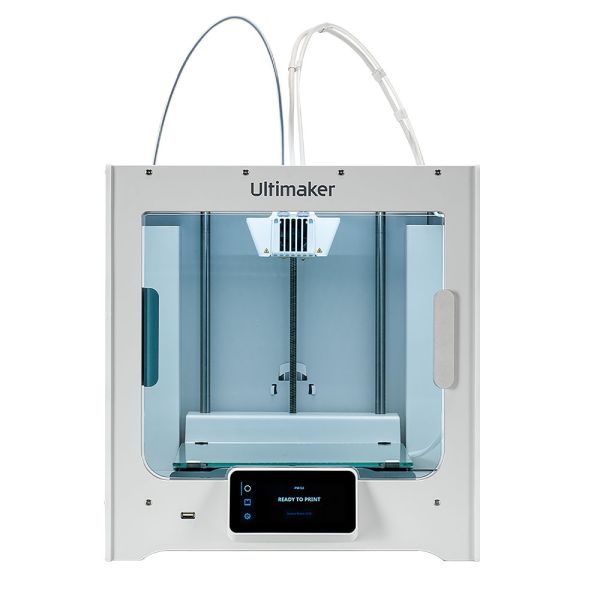

3D Printer - Ultimaker S3

The Ultimaker S3 is a dual extrusion 3D printer that delivers high-quality, composite-ready performance – in a smaller footprint.

Top Key Features

  • Composite-ready dual extrusion
  • Advanced auto bed leveling
  • Award winning touchscreen interface
  • Compatible with over 110 materials
  •

Overview

The Ultimaker S3 is a dual extrusion 3D printer that delivers high-quality, composite-ready performance – in a smaller footprint. Packed with our latest technology, the Ultimaker S3 is as easy to use as it is powerful, offering the most cost-effective way for disruptive businesses to adopt in-house 3D printing.

Active bed leveling ensures great adhesion for every print, while sensors constantly monitor material flow while printing. Combine with rigorously tested print profiles in Ultimaker Cura software, and you don’t just have a 3D printer – it’s a complete production system to depend on.

Key Features

  • Composite-ready dual extrusion
  • Advanced auto bed leveling
  • Award winning touchscreen interface
  • Compatible with over 110 materials
  • Print via Wi-fi, LAN, cloud or USB
  • Front enclosure for Improved printing environment for better results
  • Flow sensor - to stay  informed when filament runs out to increase print success
  • Easy setup and monitoring

Dimensions

Dimensions:394 x 489 x 637 mm
Weight (Net):14.4 kg
Build Volume:230 x 190 x 200 mm

Technical Specifications

Connectivity:Wi-Fi, LAN, USB
Display:4.7inch colour touchscreen
Electrical:Input: 100 - 240 VAC, 50-60 Hz Output: 350 W
Features:Swappable print cores
Noise Level:< 50 dBA
Speed:< 24 mm³/s
Build Plate:

Build Plate Leveling: Advanced active leveling


Build Plate: 20 - 100 °C heated glass build plate

Feeder Type:Dual geared feeder, reinforced for composite material
Filament:

2.85 mm

File Type:

Ultimaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG


Printable formats: G, GCODE, GCODE.gz, UFP

Layer:

0.25 mm nozzle: 160 - 60 micron

0.4 mm nozzle: 200 - 20 micron

0.6 mm nozzle 300 - 20 micron

0.8 mm nozzle: 600 - 20 micron

Nozzle Diameter:0.25 mm, 0.4 mm, 0.8 mm
Nozzle Heat-up Time:< 2 minutes
Nozzle Temperature:180 - 280 °C
Pring Head:

Dual extrusion print head with an auto-nozzle lifting system and swappable print cores

Print Technology:Fused filament fabrication (FFF)
Software:

Ultimaker Cura  – print preparation software

Ultimaker Connect – printer management software

Plugin integration    SolidWorks, Siemens NX, Autodesk Inventor

XYZ Step Size:6.9, 6.9, 2.5 micron
