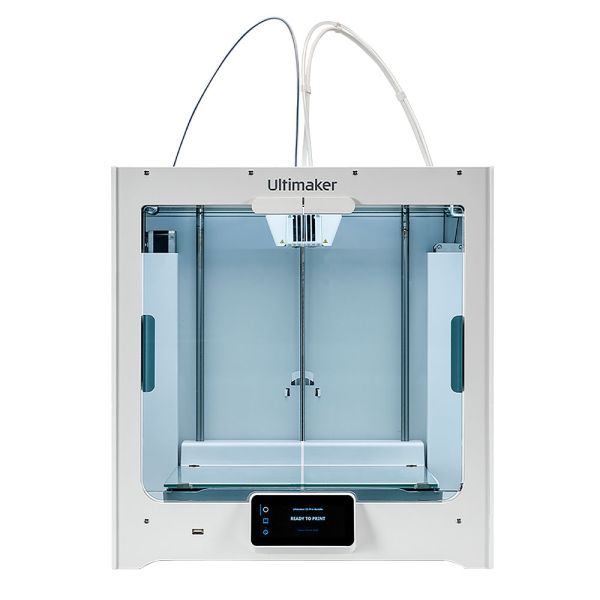

3D Printer - Ultimaker S5
Easily 3D print larger parts with world-leading material compatibility, an award-winning touch interface, and filament run-out detection.
Top Key Features
- Flexible easy to use platform
- Large build volume for maximum efficiency
- Wi-fi and ethernet capabilities
- CuraConnect to monitor and manage prints
- Intuitive touchscreen interface for easy configuration
Overview
Easily 3D print larger parts with world-leading material compatibility, an award-winning touch interface, and filament run-out detection.
The S5 is a reliable, versatile and easy to use desktop 3D printer. Engineered for printing prototypes, manufacturing aids and end-use parts. The S5 has a large build volume allowing for bigger models and maximum efficiency.
Built around seamless integration of hardware, software and materials configuration to ensure repeatable, high-quality print and efficient workflow.
Key Features
- Flexible easy to use platform
Large build volume for maximum efficiency
Wi-fi and ethernet capabilities
CuraConnect to monitor and manage prints
Intuitive touchscreen interface for easy configuration
2 Build plate options: glass and anodized aluminum
Active detailed bed leveling system
Dual extrusion technology for reliability
Material matching print cores
NFC-enabled filament spool for quick changes and high up time
Open filament system to allow a wide range of materials
Filament run-out sensor - to stay informed when filament runs out to increase print success
Dimensions
| Dimensions: | 495 x 585 x 780 mm |
|---|---|
| Weight (Net): | 20.6 kg |
| Build Volume: | 330 x 240 x 300 mm |
Technical Specifications
| Connectivity: | Wi-Fi, Ethernet, USB |
|---|---|
| Display: | 4.7 inch colour Touchscreen |
| Electrical: | Max power output: 500 W |
| Features: | Swappable print cores |
| Speed: | <24 mm3/s |
| Build Plate: | Build plate leveling: Advanced active leveling Build plate: 20-140°C headed glass build plate Build plate heat-up time: < 4 min (from 20 to 60°C) |
| Feeder Type: | Dual-geared feeder, reinforced for composite materials |
| Filament: | Compatible filament diameter: 2.85 mm
|
| File Type: | Ultimaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP |
| Layer: | Layer resolution: 0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron |
| Nozzle Diameter: | 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm |
| Nozzle Heat-up Time: | < 2 minutes |
| Nozzle Temperature: | 180 - 280°C |
| Operating System: | MacOS, Windows, Linux |
| Pring Head: | Dual extrusion print head with an auto-nozzle lifting system and swappable print cores |
| Print Technology: | Fused Filament Fabrication (FFF) |
| Software: | Ultimaker Cura – print preparation software Ultimaker Digital Factory – printer management software Plugin integration SolidWorks, Siemens NX, Autodesk Inventor |
| XYZ Step Size: | 6.9, 6.9, 2.5 micron |
-
