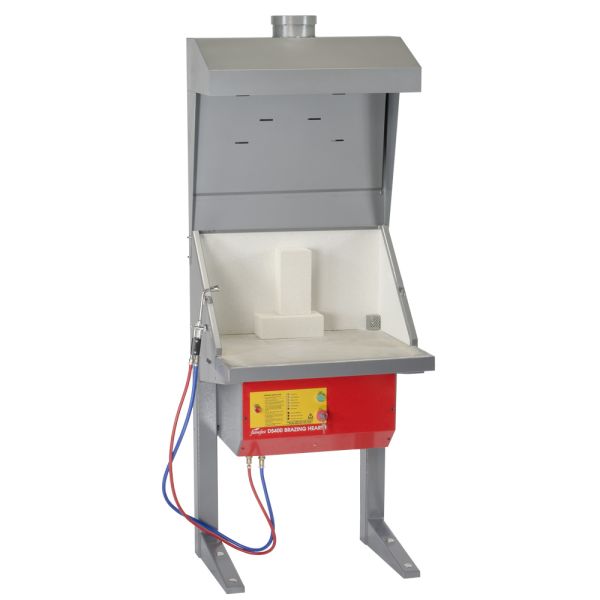

Flamefast Brazing Hearth Single - DS400S

The Flamefast DS400S is supplied with an easy-to-use single valve controlled RF80 torch which allows one-hand operation. Supplied with a solid refractory hearth with robust side and rear heat shields, the DS400S complies with British Gas standards and is a fully fail safe system.

*Canopy & extraction optional, does not come as part of the unit

Top Key Features

  • Asbestos free heat resistant refractory hearth, side and rear heat shields
  • 5 Heat Reflective Blocks
  • Push button no volt release starter
  • Requires manual restart after power failure
  • RF 80 brazing torch
  • UK Manufactured

Overview

The Flamefast DS400S is supplied with an easy-to-use single valve controlled RF80 torch which allows one-hand operation. Supplied with a solid refractory hearth with robust side and rear heat shields, the DS400S complies with British Gas standards and is a fully fail safe system.

All sequences are visually displayed using neon indicators. On start-up the gas train, hoses and torches are tested for escaping gas. Leaks from any component will result in a continuously illuminated red neon and the main flow of gas will be prevented from entering the system.

*Canopy & extraction optional, does not come as part of the unit

Key Features

  • Asbestos free heat resistant refractory hearth, side and rear heat shields
  • 5 Heat Reflective Blocks
  • Push button no volt release starter
  • Requires manual restart after power failure
  • RF 80 brazing torch
  • Colour coded reinforced gas and air hoses
  • Whisper quiet air blower fan
  • Push button electronic ignition.
  • Auto gas leak proving system on start up
  • Indicator status lights
  • Gas non-return valve
  • Operating /Instruction manual
  • UK Manufactured

Dimensions

Width:730 mm
Height:1195 mm (overall)
Depth:700 mm
Working Height:800 mm
Height with Canopy:1800 mm
Weight:122 kg

Technical Specifications

Electrical:120 Watts - 220-240 volt single phase
Extraction System:Varivac Extraction
Noise Level:Whisper quiet air blower
Safety:Units must be installed & commissioned by Flamefast qualified engineers
Appropriate PPE must be warn at all times when operating equipment
Push button no volt release starter
Manual restart after power failure
Colour coded reinforced gas and air hoses
Warranty:2 Years

PLEASE STATE GAS TYPE WHEN ORDERING

IMPORTANT NOTICE: ACCORDING TO THE HEALTH & SAFETY AT WORK ACT 1974, BS 4163 AND COSHH REGULATIONS IT IS MANDATORY THAT ALL FUMES MUST BE REMOVED AT SOURCE.

Performance

Forging Performance

Gas TypeRateBTU / HRSkWPressure
Natural gas2.18 m3/h80,00023.520 mbar
Propane1.66 kg/h80,00023.535 mbar
Butane1.70 kg/h80,00023.528 mbar



Optional Extras

  • RF10 fine jewellery torch
  • Optional additional connection for second torch
  • 300mm revolving brazing table
  • *Fume extraction to meet HSG258 regulations

*Fume extraction is mandatory as per HSG258/ COSHH regulations. Please contact us for advice and cost

Varivac_illustration

Varivac Extraction

The Varivac’s unique fume intake configuration captures all fumes and prevents any spillage. An electrical interlock prevents the use of linked equipment before the Varivac is switched ON.



It can be fitted to existing equipment if required with a choice of low level or high rise exhaust outlets.



To fit Varivac Extraction Place Varivac canopy around the outer rear top of the unit and bolt through the corresponding holes.
