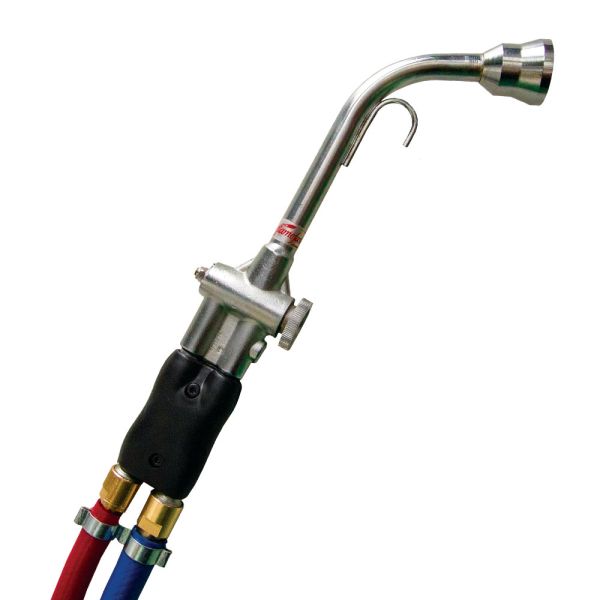

Flamefast Gas Torches - RF10 & RF80
A range of single hand operated soldering and brazing torches developed for fine jewellery used in conjuction with Flamefast blower fan.
Top Key Features
- Parking hook, & Screwed connection for flexible hoses
- Ideal for fine jewellery (RF10) and heavy brazing (RF80)
- Plastic hand grip
- Work piece cooling by rapid air blast
- A choice of models for natural or bottled gas
- Thumb wheel for one handed adjustment
- UK Manufactured
Overview
A range of single hand operated soldering and brazing torches developed for fine jewellery and heavy brazing.
The Flamefast RF range of Gas/Air torches are constructed from chrome plated brass with a heat resistant steel burner head ensuring long and reliable service.
Two torches are available, the RF80 which is designed for heavy brazing and the RF10 which is smaller in size with a heat output ideal for fine jewellery.
Key Features
- Parking hook & Screw connection for flexible hoses
- Ideal for fine jewellery (RF10) and heavy brazing (RF80)
- Plastic hand grip
- Work piece cooling by rapid air blast
- A choice of models for natural or bottled gas
- Thumb wheel for one handed adjustment
- Convenient to use
- Built in balance and position of controls enables effortless single handed operation
- Instantaneous adjustment of flame size, shape and intensity over the full range is achieved by a single rotary control valve
- UK Manufactured
Dimensions
| Weight: | RF10: 0.25 kg - RF80: 0.6 kg |
|---|
Technical Specifications
| Features: | Air Supply: 9MS8 whisper quiet blower fan |
|---|---|
| Frame Material: | Plastic hand grip |
| Safety: | Use only the gas pressure recommended by Flamefast Do not use propane or butane at hight pressure Make sure a fixed pressure regulator is used, available from Flamefast Always have a non-return valve fitted to both gas and air lines. (available from Flamefast) Appropriate PPE must be warn at all times when operating equipment |
| Warranty: | 1 Years |
PLEASE STATE GAS TYPE WHEN ORDERING
IMPORTANT NOTICE: ACCORDING TO THE HEALTH & SAFETY AT WORK ACT 1974, BS 4163 AND COSHH REGULATIONS IT IS MANDATORY THAT ALL FUMES MUST BE REMOVED AT SOURCE.
Performance
Air Supply
The torches are designed to operate only with the Flamefast 9MS8 whipser quiet air blower fan
Performance
| Gas Type | Pressure | Â | Â | Â |
| Natural gas | 20 mbar | Â | Â | Â |
| Propane | 35 mbar | Â | Â | Â |
| Butane | 28 mbar | Â | Â | Â |
Â
Gas Consumption
| Model | N.G m<sup>3</sup>/H | LPG KG/H | BTU/H | KW |
| RF10 | 0.27 | 0.21 | 10 000 | 2.93 |
| RF80 | 2.2 | 1.6 | 80 000 | 23.5 |
Â
Optional Extras
- Gas and air colour coded hoses
- Carton of 10 heat reflective blocks
- 300mm revolving brazing table
- Gas and air non-return valves
- *Fume extraction to meet the requirements of COSHH Regulations
*Fume extraction is mandatory as per HSG258/ COSHH regulations. Please contact us for advice and cost
Part Numbers
| 50TRC-A20 NG | RF10 Natural Gas |
| 50TRC-A20 LG | RF10 LPG |
| 50TRC-A21 NG | RF80 Natural Gas |
| 50TRC-A21 LG | RF80 LPG |
-
