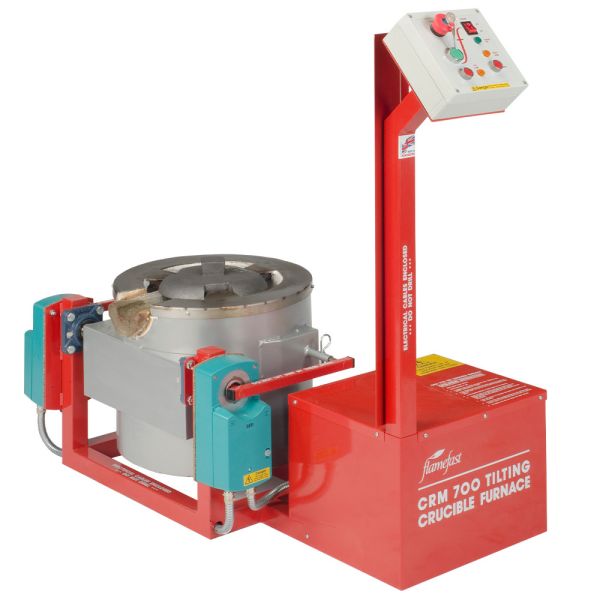

Flamefast Melting Crucible Furnace - CRM700

Specifically designed for use in education, the CRM700 Crucible Furnace is capable of melting a range of metals including aluminium, brass, bronze, gold and silver. Force draft, motorised tilt, recommended for educational use only

Top Key Features

  • Whisper quiet blower fan
  • Super efficient insulation
  • Push button, no volt release starter
  • Requires manual restart after power failure
  • UK Manufactured

Overview

Specifically designed for use in education, the CRM700 Crucible Furnace is capable of melting a range of metals including aluminium, brass, bronze, gold and silver.  Force draft, motorised tilt.

All valves and pipe work, including the whisper quiet blower fan, are included within the self-contained cabinet. Safe operation is by panel mounted controls. Ignition is automatic and there is automatic flame control with no user interaction required. On ignition, the crucible furnace is automatically put on low heat for 5 minutes to preheat the chamber and crucible pot before ramping up to full heat input. This helps to reduce the risk of thermal shock of the pot.

Recommended for educational use only.

Key Features

  • Whisper quiet blower fan
  • Super efficient insulation
  • Push button, no volt release starter
  • Requires manual restart after power failure
  • Electronic flame failure protection with automatic ignition
  • TPX25B crucible pot with a capacity of 4.2 litres
  • Designed to work with natural gas, propane or butane
  • Operation / Instruction manual
  • 2 year warranty
  • UK Manufactured

Dimensions

Width:500 mm
Height:1050 mm
Depth:883 mm
Weight:75 kg

Technical Specifications

Electrical:120 Watts - 220 - 240 Volts
Features:Weight limit - 10 kg
Safety:Fume Extraction is mandatory as per HSG258 / COSHH regulations
Appropriate PPE must be warn at all times when operating equipment
Electronic flame failure protection
Temperature:1200 °C (max)
Warranty:2 Years

PLEASE STATE GAS TYPE WHEN ORDERING

IMPORTANT NOTICE: ACCORDING TO THE HEALTH & SAFETY AT WORK ACT 1974, BS 4163 AND COSHH REGULATIONS IT IS MANDATORY THAT ALL FUMES MUST BE REMOVED AT SOURCE.

Performance

Gas TypeRateBTU / HRSkWPressure
Natural gas2.73 m3/h100 00029.320 mbar
Propane2.1 kg/h100 00029.335 mbar
Butane2.1 kg/h100 00029.328 mbar



Melting Times

Typical melting times from cold
Aluminium4 kg in 25 minutes
Copper / Zinc11 kg in 40 minutes



Features

The CRM700 has a motorised safety tilt system that is push-button operated. When the tilt button is pressed the unit will slowly rise from the rest position towards the pouring position. At the pouring position the unit will slowly pour the molten metal into the mould. When the tilt button is released, the unit begins to return to the rest position. The unit can be held in one position by
continuously pressing and releasing the tilt button.

This furnace has the ability to think for itself. It can re-establish firing conditions, maintain correct gas/air ratios and shut off safely if the mains electrical power or gas is cut off. Efficient insulation and refractory materials give fast heating together with fuel gas economy.

SMC_bkgr

The very best
T-level hydraulic
& pneumatic training

Optional Extras

  • Replacement TPX25B crucible pot
  • Face shield (Plycarbonate)(2.2 mm)
  • Heat resistant gloves
  • Chrome leather leggings
  • Chrome leather apron
  • Hardware support casting kit
  • Moulding Bench
  • *Fume extraction to meet the requirements of COSHH Regulations



*Fume extraction is mandatory as per HSG258/ COSHH regulations. Please contact us for advice and cost

Documents for Download:
