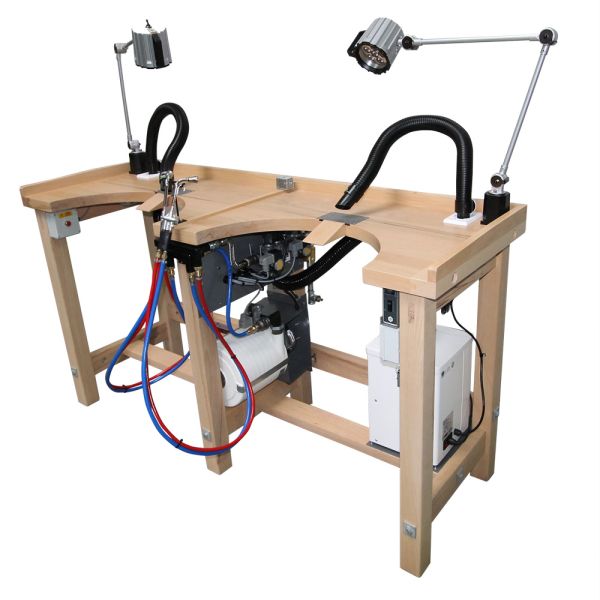

Jewellery Benches EM221 & EM222

The Flamefast jewellery benches can be supplied in both double and single station configurations and come as a complete unit with integral air blower, integrated circulatory extraction system, gas proving detection, bench top lighting and two Flamefast RF10 torches.

Top Key Features

  • x2 RF10 jewellery torches with colour coded reinforced gas and air hoses
  • Flexible approved gas hose for connection
  • Integral HEPA extraction system
  • Double solenoid and non-return valve fitted to gas inlet
  • Gas/air manifolds rear and front
  • UK Manufactured...

Overview

The Flamefast jewellery benches can be supplied in both double and single station configurations and come as a complete unit with integral air blower, integrated circulatory extraction system, gas proving detection, bench top lighting and two Flamefast RF10 torches. The only services required are a 240VAC 5 amp power supply and either a natural gas or LPG gas supply.

All benches are manufactured from 50mm thick solid beech. They operate with the unique RF10 Jewellery Torch, which automatically supplies the correct/air mixture with the turn of one single control valve. This is convenient to any operator but will give confidence to younger students in particular, enabling them to produce a higher standard of work in a shorter time.

Quietness of operation is essential when instructing young student and in the professional environment. Flamefast benches are fitted with ‘whisper quiet’ blower fan, which is specially designed to provide combustion air for the soldering torches.

Key Features

  • x2 RF10 jewellery torches with colour coded reinforced gas and air hoses
  • Flexible approved gas hose for connection
  • Integral HEPA extraction system
  • Double solenoid and non-return valve fitted to gas inlet
  • Gas/air manifolds rear and front
  • Bench top lighting
  • Blower Fan - single phase
  • Torch support stand to suit
  • No volt starter
  • Self ignition system fitted
  • Incorporates gas proving system, interlocked with integral extraction
  • Integrated extraction system
  • UK Manufactured

Dimensions

Width:1810 mm
Height:70 mm (stand up)
Depth:600 mm
Working Height:950 mm
Weight:83 kg

Technical Specifications

Electrical:5 amp, 220 - 240 volt single phase, 50Hz
Frame Material:50 mm Solid beech timber
Extraction System:Integral HEPA extraction system
Safety:
Warranty:2 Years

IMPORTANT NOTICE: ACCORDING TO THE HEALTH & SAFETY AT WORK ACT 1974, BS 4163 AND COSHH REGULATIONS IT IS MANDATORY THAT ALL FUMES MUST BE REMOVED AT SOURCE.

Performance

Gas TypeRatePressure
Natural gas0.54 m3/h20 mbar
Propane0.42 kg/h35 mbar
Butane0.42 kg/h28 mbar



Optional Extras

  • Carton on 10 or 20 heat reflective block
  • Wheelchair access option available
  • Single station available
  • Compressed air optional

Designed to provide safe working tools and materials for use with Flamefast Gas Equipment. Available in kits or as individual items.
