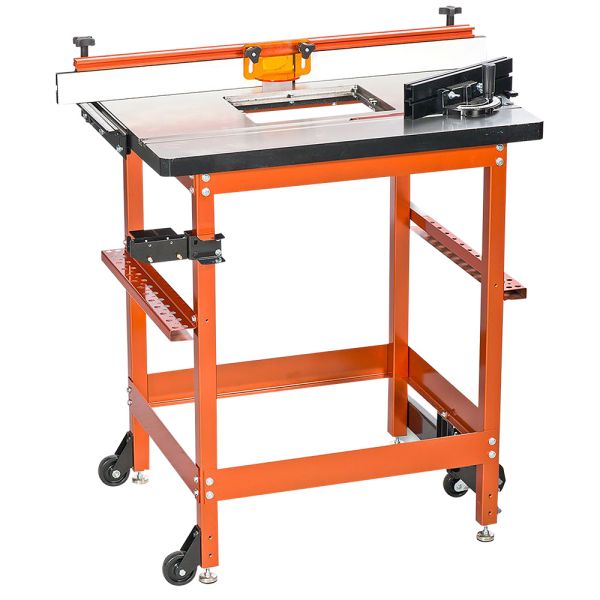

UJK Professional Router Table
This professional router table is a solid, dependable unit that will give many years of useful service. The benefits of using cast iron for the manufacture of machine tables are well known, especially where vibration damping and stability are paramount.
Top Key Features
- Solid dependable router table
- Top accepts the UJK router elevator plus a range of inserts
- Quality one-piece aluminium fence...
Overview
This professional router table is a solid, dependable unit that will give many years of useful service. The benefits of using cast iron for the manufacture of machine tables are well known, especially where vibration damping and stability are paramount.
The quality of the surface grinding on this 815 x 615 x 40mm top is superb, offering little resistance when passing stock across the table during use. If you have room in your workshop for a full sized router table, you will wonder how you managed without one. There are many complex routing operations that can only be carried out using a table set-up.
The aperture in the table tops is designed to accept our router elevator and when fitted with this unit you will have an excellent versatile set-up. Both tops feature a groove to accept a mitre fence attachment and are pre-drilled to accept the fence, leg stand and optional dust collection box.
Key Features
- Solid dependable router table
- Top accepts the UJK router elevator plus a range of inserts
- Quality one-piece aluminium fence
- Sturdy leg stand with good mobility
- Cast iron top for complete stability
- Optional dust extraction box and router insert available
Dimensions
Technical Specifications
| Extraction System: | Dust extraction outlet - 62 mm |
|---|---|
| Features: | Fence Size: 904 x 90 mm |
Additional Information
The Legs
The leg stand is of sturdy construction with a foot operated retractable castor for excellent mobility around the workshop. A neat rack is provided for keeping your most popular router cutters to hand and provision is made for storage of the supplied mitre fence assembly. Stand height including cast iron top 930mm.
The Professional Laminated router table
High grade birch ply with a hard wearing, low friction, phenolic laminated surface. The ply core ensures the top will remain flat throughout its working life, while the laminated top ensures workpieces glide smoothly. An extruded aluminium track inset into the tabletop includes a standard 19mm track for the use of a mitre fence and a T-track slot for other jigs and accessories. The 230 x 306mm central aperture will accept any of the UJK router table inserts as well as the UJK router elevator. The top measures 800 x 600mm and is pre-drilled to fit the UJK Professional router table leg stand, fence assembly or optional dust collection box
The UJK professional router table
A solid, dependable unit that will give many years of useful service. The benefits of using cast iron for the manufacture of machine tables are well known especially where vibration damping and stability are paramount. The quality of the surface grinding on this table is superb, offering little resistance when passing stock across the table during use. There are many complex routing operations that can only be carried out using a table set-up. The aperture in the table top is designed to accept our router elevator and when fitted with this unit you will have yourself an excellent versatile setup. Top measures 812 x 610mm.
The fence
A superb quality single aluminium section supplied with a transparent dust port for efficient extraction from above the table. Provision is made for the fitting of guards and accessories with a T-slot at both the top and front of the fence. An adjustable transparent guard is included for your safety. Adjustable scales are provided for attachment at either side of the table and the fence is attached to these and locks into place at the required position. A scale is also provided for the top of the fence with the zero position at the centre. Adjustable in-feed and out-feed fences attach to either side of the aluminium section and the central aperture can be opened and closed according to the diameter of the cutter in use. Fence measures 904 x 90mm high.
Optional Extras
- UJK QuickStop
- 10mm /aluminium router table insert c/w universal base
- 10mm Aluminium table insert
- Router table inserts
- Vertical feather boards
- Horizontal feather board
- UJK router elevator
- UJK dust extraction box
- Off set bards for router table
- Extension for cast iron router table
- Digital height gauge
- Precision mitre gauge fence & flip stop
- Professional coping sled
-
