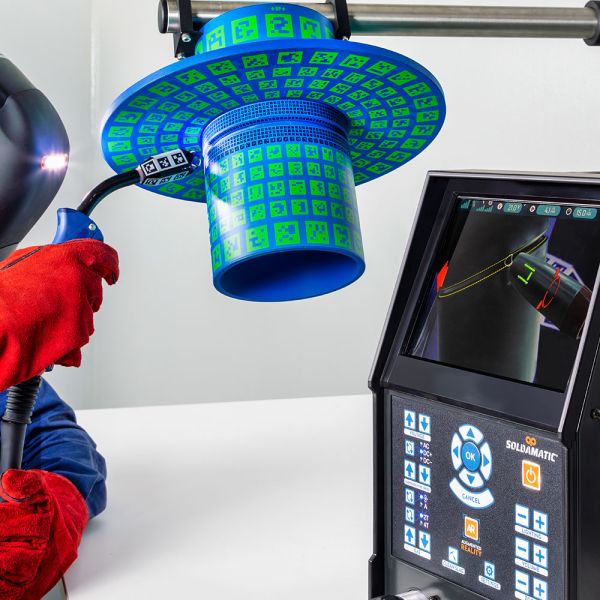

Soldamatic Augmented Welding Simulator
State-of-the-art, turnkey, scalable, effective, and hyper-realistic welding training solution powered with Augmented Reality, revolutionizing welding training to create new generations of welders. Qualify more welders in less time while reducing costs & risks using the most complete welding simulator.
Top Key Features
- Most realistic welding training on the market
- Developed by welders for welders
- Incorporates practical and theoretical learning content
- Allows remote access
- Perfect for beginner to professional
Overview
State-of-the-art, turnkey, scalable, effective, and hyper-realistic welding training solution powered with Augmented Reality, revolutionizing welding training to create new generations of welders. Qualify more welders in less time while reducing costs & risks using the most complete welding simulator. The lack of qualified workforces in the industrial sector is a reality. Therefore training solutions in Augmented reality (AR) is important for the development of abilities to attract and compromise with the new generations helping to reduce this gap.
The Augmented reality plays a key role in the skills development because it allows the practice of skills in a controlled and secure environment. You can practice until the competencies needed are acquired to pass into a real environment.
Key Features
- Most realistic welding training on the market
- Developed by welders for welders
- Incorporates practical and theoretical learning content
- Allows remote access
- Multi-sensory training experience (sight, sound & feel)
- Perfect for beginner to professional
- Green technology
- Safer learning experience
- Available in multiple languages
- Cost saving
Dimensions
Length: | 439 mm |
---|---|
Width: | 237 mm |
Height: | 533 mm |
Weight: | 10.8 kg (with helmet) |
Technical Specifications
Certification: | ISO 9001 Quality Management System ISO 14001 Environmental Management System Regulations: CE and FCC |
---|---|
Display: | 9.7", HD LCD 1024 x x768 XGA |
Electrical: | 120 - 240V |
Features: | Remote Maintenance, training and distance learning Defect analysis module: porosity, spatter, slag inclusion, burnthrough (available for AWM welding joints) Standard Analysis module included (advanced license optional) Customer specified adaptations on demand Exercises, courses, students and diploma reports. Also CSV format available for end-user custom reports Shareview allowing teachers to see what the student sees in real time either remote or local Live chat available for students & teachers On-screen help guides that can be added/removed Undo welding option Multipass exercise with different welding processes Push/Drag welding technique Available in multiple languages Can try different settings during exercise and their effects in the welding bead Real welding mask included Annual or Lifetime subscription options Online and Offline updates Unit can be used with glasses GMAW (MIG/MAG) & FCAW G/S, SMAW (MMAElectrode), GTAW (TIG) welding processes supported Student personalised profile |
Materials / Supported Materials: | Coupon material selection: Carbon steel, stainless steel, Aluminium |
Warranty: | 1 year by default, up to 2 more years optional |
System Specifications
Processor | Intel® Core™ i5 10th gen |
Chipset | Intel® Q470E |
RAM | 16 GB (2 x 8GB Dual-Channel) DDR4 2400Mhz |
Graphics card | NVIDIA Quadro T1000 |
Hard disc | M.2 SSD 128GB |
Audio | Realtek High Definition Audio |
Operating System | Seabery Operating System optimized for Soldamatic 2023 |
Automatic Shutdown | Can be configured |
Back panel ports | Screen: HDMI/Display Ports USB: 4 x USB 3.2 Gen 1 Connection: 2x LAN 2x Antennas Intel® WiFi6 Dual Band Audio: microphone & speakers ports Others: Robotics port |
Front Panel ports | 1 X USB type A, 1 X USB type B |
AR Vision Module resolution | MIPI LCD 4,7” HDMI Display input up to 1280x720 Ultra-low video distortion 24-bit True Colour |
Camera resolution (x2) | 640x480 / 800x600 Autofocus |
Available In Exercise Modifications
- Shielding gas selection: flow can be modified during exercise
- Wire speed selection: in GMAW (MIG/MAG) and FCAW
- Intensity (amperage) selection
- Voltage selection
- Pieces can be manipulated separately at any time during the exercise
- Different settings
Training Content
Augmented Training:
Developed by Seabery: Augmented Training Soldamatic Welding Course; Augmented Training Methodology; Introduction to Robot Welding; MAG position PF / PD / PH
International Publisher Content:
AWS, CESOL, DVS, Ludo Breemans
Weldling Positions
- PA, PB, PC, PD, PF/PG, PE, PH/PJ
- HL045/JL045 - 1F, 2F, 3F, 4F, 5F, 6F, 1G, 2G, 3G, 4G, 5G, 6G
- HL045 (6G) available in AWM-002, AWM-008, AWM-011, AWM-012 and AWM-016
- 6GR available in AWM-011 (Pipeline 6GR)
Gas Composition
Material | GMAW | GTAW | FCAW |
Cabon Steel | Argon - CO², CO² | Helium* | Argon - CO², CO² |
Aluminium | Argon | Argon | - |
Stainless Steel | Argon - O² | Argon | - |
Electrode stick / Filler rod diameter selection
Material | GMAW | SMAW | GTAW |
Cargon | 0.8mm, 1mm, 1.2mm | 2.5mm, 3.25mm, 4mm | 2mm, 2.4 mm, 3.2mm |
Stainless Steel | 0.8mm, 1mm, 1.2mm | 2.5mm, 3.25mm, 4mm | 2mm, 2.4 mm, 3.2mm |
Aluminium | 1mm, 1.2mm | - | 2mm, 2.4 mm, 3.2mm |
Electrode stick / Filler rod selection
Material | GMAW | SMAW | GTAW | FCAW |
Cargon | ER70S-6 | E7018, E6010, E6013 | ER70S-6 | E71T-1, E71T-7 |
Stainless Steel | E316LSi | E316L | ER316L | - |
Aluminium | ER5356 | - | ER5356 | - |
Report Features
CTWD, Travel Speed, Work Angle, Travel Angle, Trajectory, Voltage, Wirefeed Speed, Technical Parameters, Equipment Settings, and Bend Test
Coupon Thickness Selection
Standard: 3mm, 6mm, 10mm
With Advanced License: 1mm, 2mm, 7mm, 8mm, 15mm, 16mm, 20mm, 25mm
Other Thicknesses: On demand with Industrial Welding Service
General
- Real welding torches by Abicor Binzel
- Real advanced welding torches handle ergonomics by Abicor Binzel
- Haptics advanced GMAW/FCAW torch includes vibration feature
- Welding sounds recorded in real welding lab
- Real welding mask
- Plug welding in AWM-005 (Automotive Thin Plates) and Industrial Services
- Straight, Traingle, Convex, Circle, Zigzag welding pattern
- Open root welding in AWM-006, AWM-008, AWM-011, AWM-012, AWM-013 and AWM-015
- Transfer modes - Short circuit, globular, spray, pulsed-arc (available for AWM welding joints)
Default Welding Joints Included
Training Welding Joints: Overlapped plate, V-Butt plate, T-Angled plate to plate, V-Butt pipe, T-Angled pipe to plate
Additional Welding Joints Available
20 Additional Advanced Welding Multijoints available based on Foundational, Automotive, Railway, Shipbuilding and Oil & Gas industries:
AWM001, AWM002, AWM003, AWM004, AWM005, AWM006, AWM007, AWM008, AWM011, AWM012, AWM013, AWM014, AWM020 available for AWS training content
Accessories Standard
- Filler rod
- Welding gloves
- Wi-Fi antennas
Accessories Optional
GTAW (TIG) Pedal, Workstand, Augmented Lab server including router, and flight case.
Training Content
Augmented Training:
Developed by Seabery: Augmented Training Soldamatic Welding Course; Augmented Training Methodology; Introduction to Robot Welding; MAG position PF / PD / PH
International Publisher Content:
AWS, CESOL, DVS, Ludo Breemans
Default Welding Joints Included
Training Welding Joints: Overlapped plate, V-Butt plate, T-Angled plate to plate, V-Butt pipe, T-Angled pipe to plate
Additional Welding Joints Available
20 Additional Advanced Welding Multijoints available based on Foundational, Automotive, Railway, Shipbuilding and Oil & Gas industries:
AWM001, AWM002, AWM003, AWM004, AWM005, AWM006, AWM007, AWM008, AWM011, AWM012, AWM013, AWM014, AWM020 available for AWS training content
General
- Real welding torches by Abicor Binzel
- Real advanced welding torches handle ergonomics by Abicor Binzel
- Haptics advanced GMAW/FCAW torch includes vibration feature
- Welding sounds recorded in real welding lab
- Real welding mask
- Plug welding in AWM-005 (Automotive Thin Plates) and Industrial Services
- Straight, Traingle, Convex, Circle, Zigzag welding pattern
- Open root welding in AWM-006, AWM-008, AWM-011, AWM-012, AWM-013 and AWM-015
- Transfer modes - Short circuit, globular, spray, pulsed-arc (available for AWM welding joints)
Soldamtic - 2023 New release
Discover Soldamatic 2023, the simulator that will take your welding to the next level
Soldamatic IE 4.0 - Welding Joints
Soldamatic IE 4.0 offers the most comprehensive and advanced welding joints to train every type of welder.
