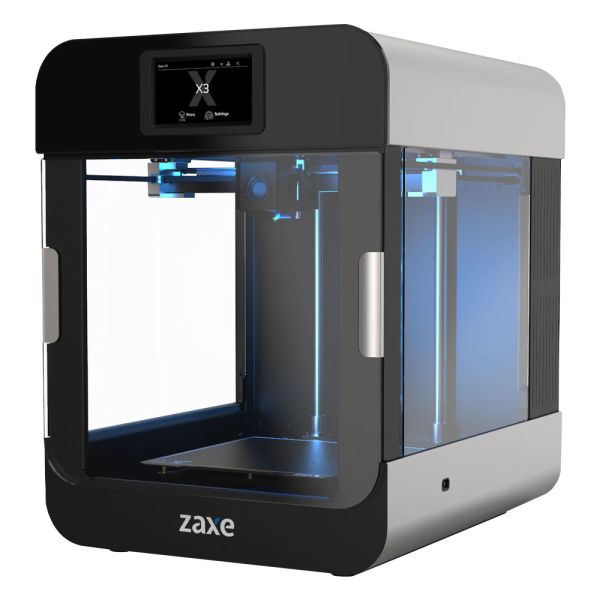

3D Printer - ZAXE X3

Zaxe X3 provides an affordable industrial 3D printing experience on a smaller scale with a Titanium E3D V6 Printhead, Core XY system and passive heated chamber.

Top Key Features

  • E3D V6 Titanium printhead
  • Fully automatic calibration
  • Hepa, carbon filters
  • Colourful guiding LEDs
  • 110° Swing door

Overview

Zaxe X3 provides an affordable industrial 3D printing experience on a smaller scale with a Titanium E3D V6 Printhead, Core XY system and passive heated chamber.

Zaxe X3’s fully automatic calibration system completely eliminates guesswork and reduces the margin of error. Even inexperienced users can achieve perfect calibration and save time when they use their 3D printer.

Experience the world-class 3D printing performance of Zaxe X3 thanks to the innovative Core XY Mechanical System. Zaxe x3 will provide you with the speed, precision, and consistency that you need to take your production efficiency to the next level.

Vibration during high-speed printing sessions can decrease print quality. Zaxe X3 has a body that is manufactured in one single piece. The stable frame reduces vibrations during intense printing sessions which guarantees better print quality every time you use it.

Key Features

  • E3D V6 Titanium printhead
  • Fully automatic calibration
  • Hepa, carbon filters
  • Colourful guiding LEDs
  • 110° Swing door
  • Innovative core XY mechanical system
  • Sturdy steel body
  • Powerful electronics
  • Flexible printing table
  • WiFi connection

Dimensions

Dimensions:410 x 583 x 530 mm
Build Volume:220 x 230 x 250 mm

Technical Specifications

Connectivity:Wi-Fi, Ethernet, USB, Flash Disk
Display:5” Colour Touch Screen
Features:

Fully Automatic Calibration

Power Outage Protection

Filament Sensor

Supported Material:PLA, ABS, PETG, Nylon, Flex and Carbon fibre, Wood, Copper, Metal Filled Filaments
Warranty:24 Months
Extruder:Extruder Max Temp: 300°C
Filament:Filament Spool 1.75 mm
File Type:.stl, .amf, .gcode
Filter:HEPA + Carbon Filter
Heated Bed:

Heated, Flexible, Magnetic PEI Build Table

Layer:25 - 400 Micron
Nozzle Diameter:0,25/0,4/0,5/0,6 mm
Nozzle Temperature:300°C (max)
Pring Head:Single, Titanium E3D V6
Software:xDesktop
